Front-positioned radiator with a large surface area.
Frame
Adjustable fork; compression and rebound.

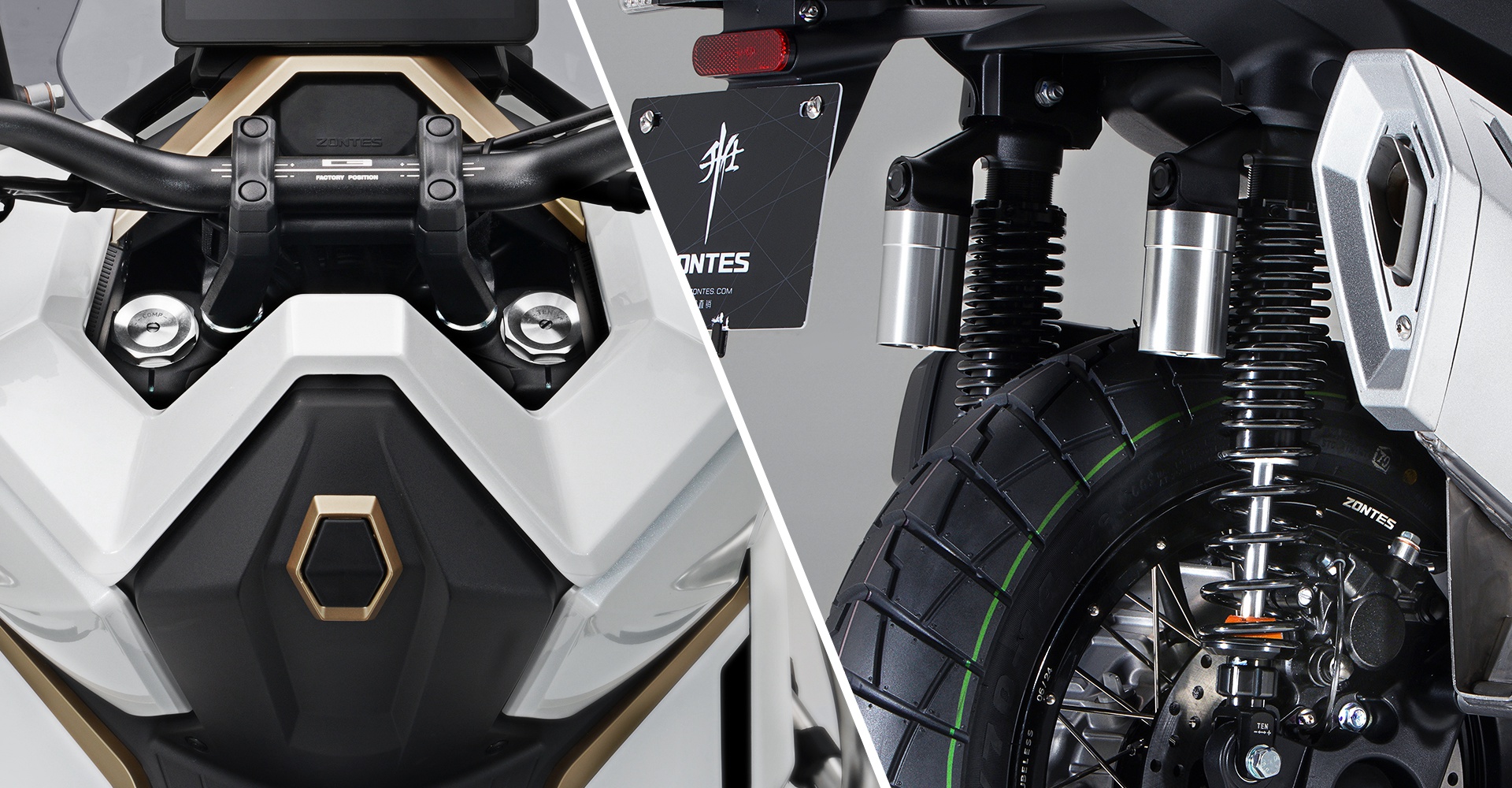

Twin shock absorbers with adjustable preload.
Disconnectable ABS on rear wheel.
Frame
17” tubeless front wheel.
300 mm disc.
J.Juan 4-piston radial brake caliper.
Dual sport tyres.
Frame
41mm USD forks.
154 mm travel.
Tyre pressure and temperature sensors.
Equipment
Configurable 8” TFT.
Mirroring with smartphone.
Equipment
Front and rear cameras with 128 GB of internal memory.
Sony Starlight Night Vision Sensor.
140° wide angle and F1.8 aperture.
Equipment
Third generation keyless start.
Central locking.
Electric opening of seat and tank.
Equipment
Large 17.5 litre tank.
Keyless closure cap.
Equipment
Space for two full-face helmets.
Configurable compartment for small items.
Lined, illuminated, and with dual charging ports.
Equipment
Adjustable windscreen.
Five adjustment positions.
Equipment
Four powerful front LED modules.
Day time running lights.
Fog lights.
Equipment
Front and rear camera.
Crash bars protection.
Equipment
Ergonomic memory foam seat.
Keyless central locking.
Hydraulic seat support for comfortable opening.
Equipment

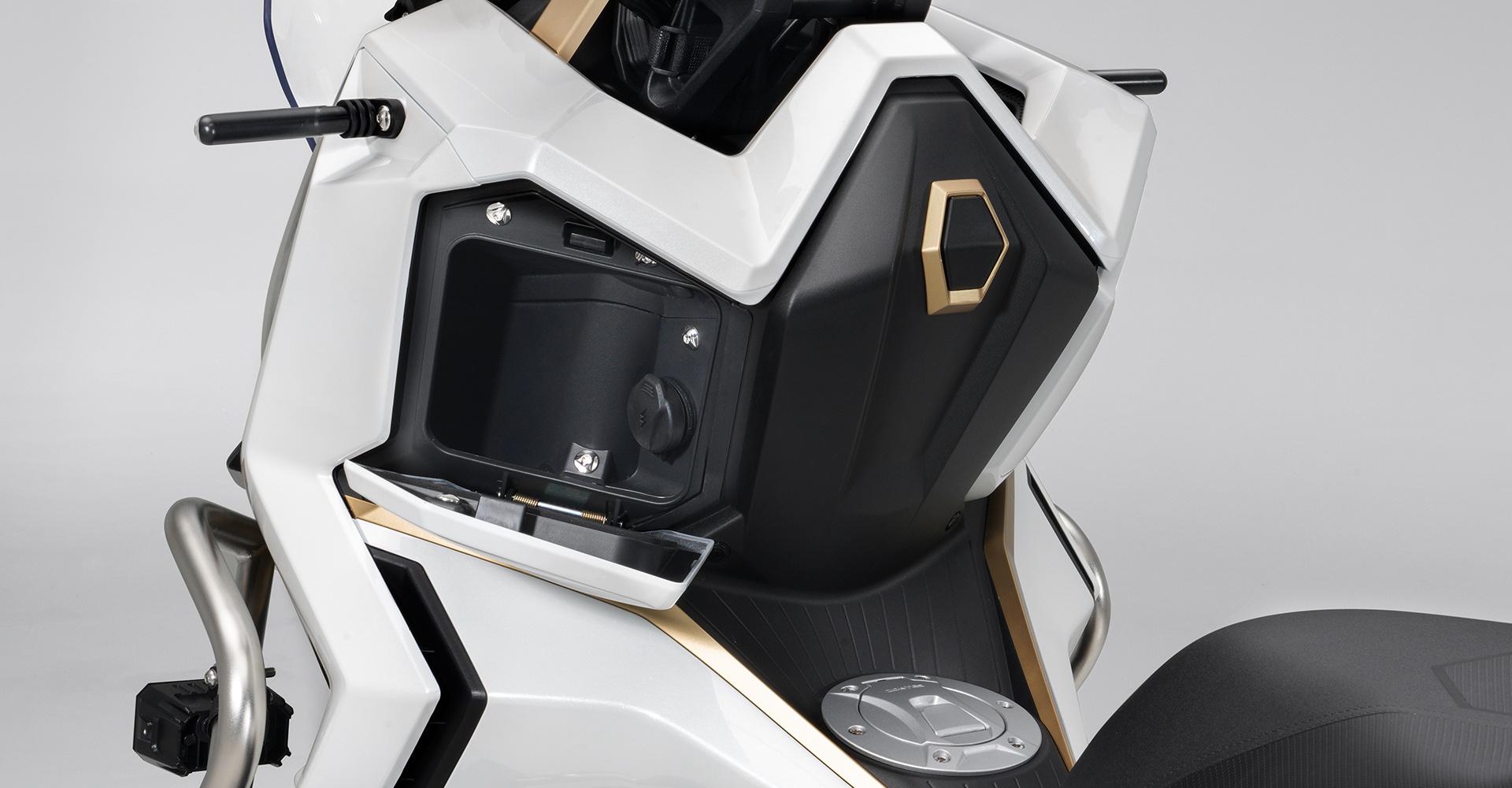

Glove compartment with USB type A and C charging socket.
Fast charging up to 18W.
Retractable bag holder hook.
Equipment
Handguards.
Heated grips.
Equipment

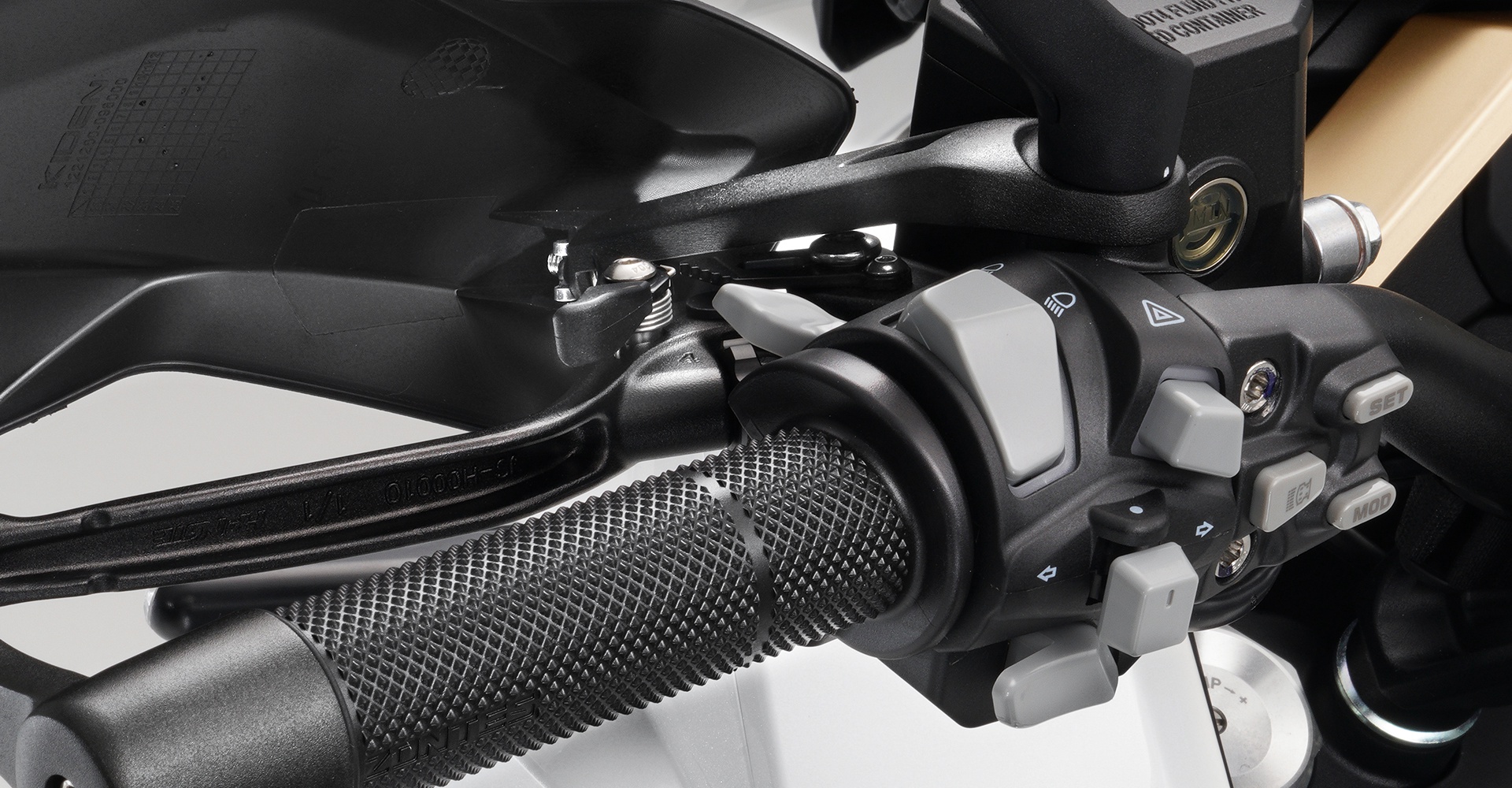

Backlit controls.
Handbrake.
Adjustable levers.
Technical Specifications
Model
368G
Length × Width × Height (mm)
2230 x 925 x (1370/1470)
Wheel Base (mm)
1560
Gross mass (kg)
197
Minimum ground clearance (mm)
180
Seat Height (mm)
795
Fuel Tank Capacity (L)
17.5
Engine Type
ZT1P79MP-A
Displacement (cm³)
368
Compression Ratio
11.8:1
Max power (kw/rpm)
28.5(38.7ps)/7500
Max torque (N.m/rpm)
40/6000
Idling Speed (rpm)
1600±100
Ignition Type
By ECU
Cylinder Type
Single cylinder
Cooling
Water cooling
Start Method
Electronic ignition
Max speed (km/h)
139
Fuel consumption (L/100km)
3.5
Fuel
E5
Gear
Automatic stepless speed change
Fuel Injection System
BOSCH
Transmission
CVT
Environmental Step
EURO V+
Brake System
Dual channel ABS
Front Tyre
110/70-17
Rear Tyre
150/70-14
Front Rim Size
MT:3.00x17
Rear Rim Size
MT:4.25x14
Frame System
Iron pipe frame
Headlight / taillight / turning signal light
LED
Battery (Ah)
12Ah/12V
Battery Type
Gel battery
Powerful Pedigree, Exuding Dynamic Style
The 368cc engine boasts an 11.8:1 compression ratio, achieving an impressive 28.5kW of power and 40Nm of torque with remarkable fuel efficiency.
Breaking Convention, Redefining Boundaries

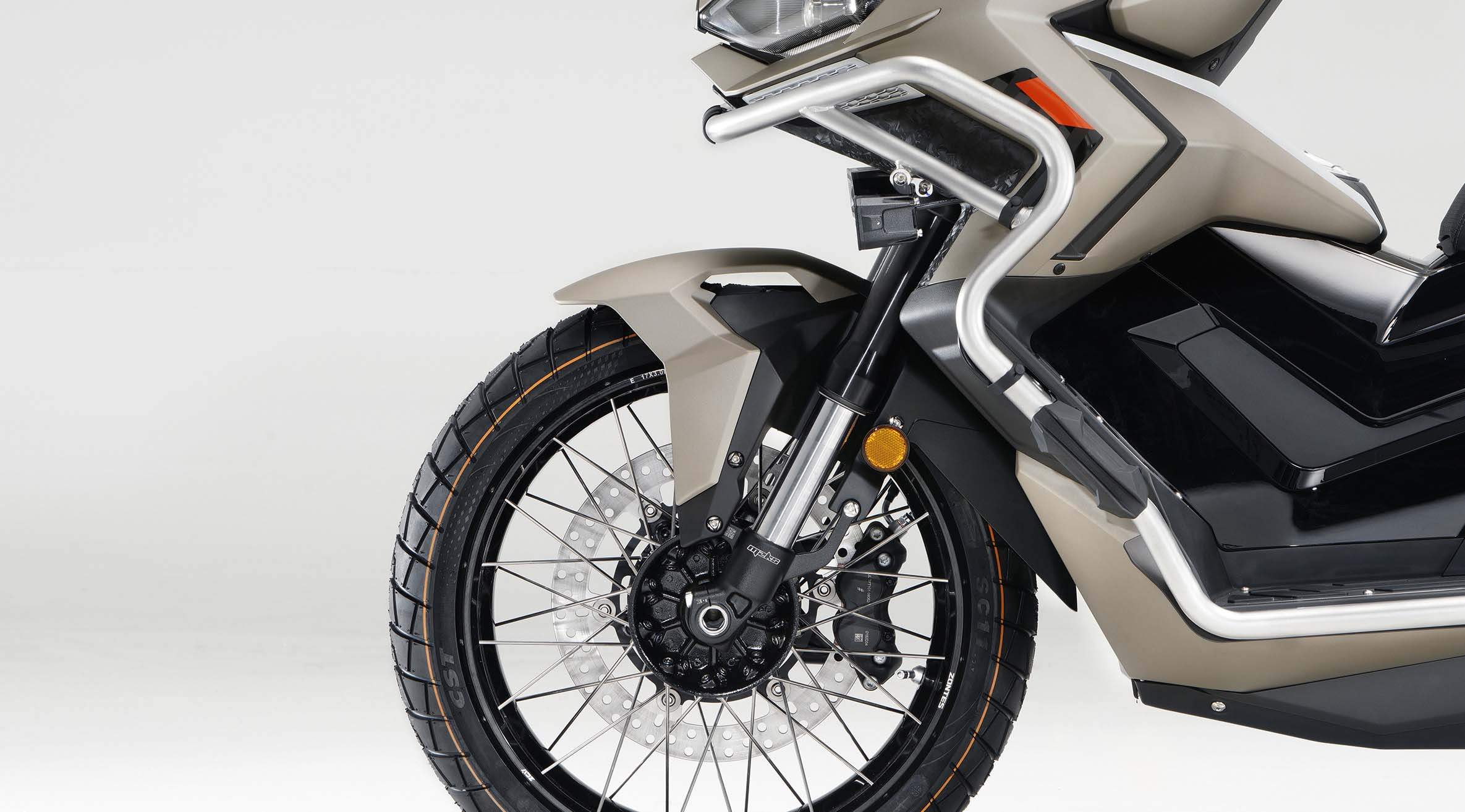

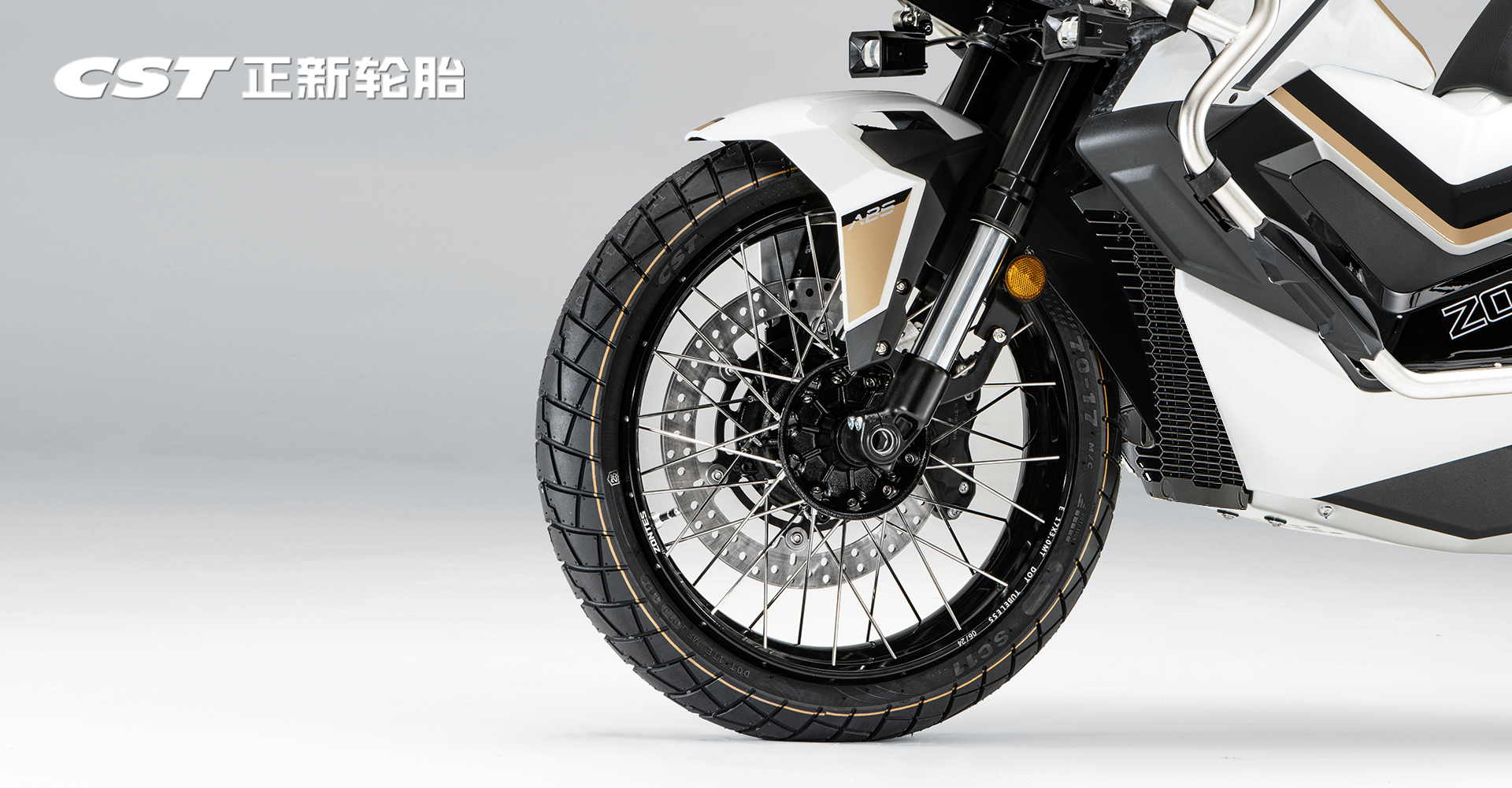

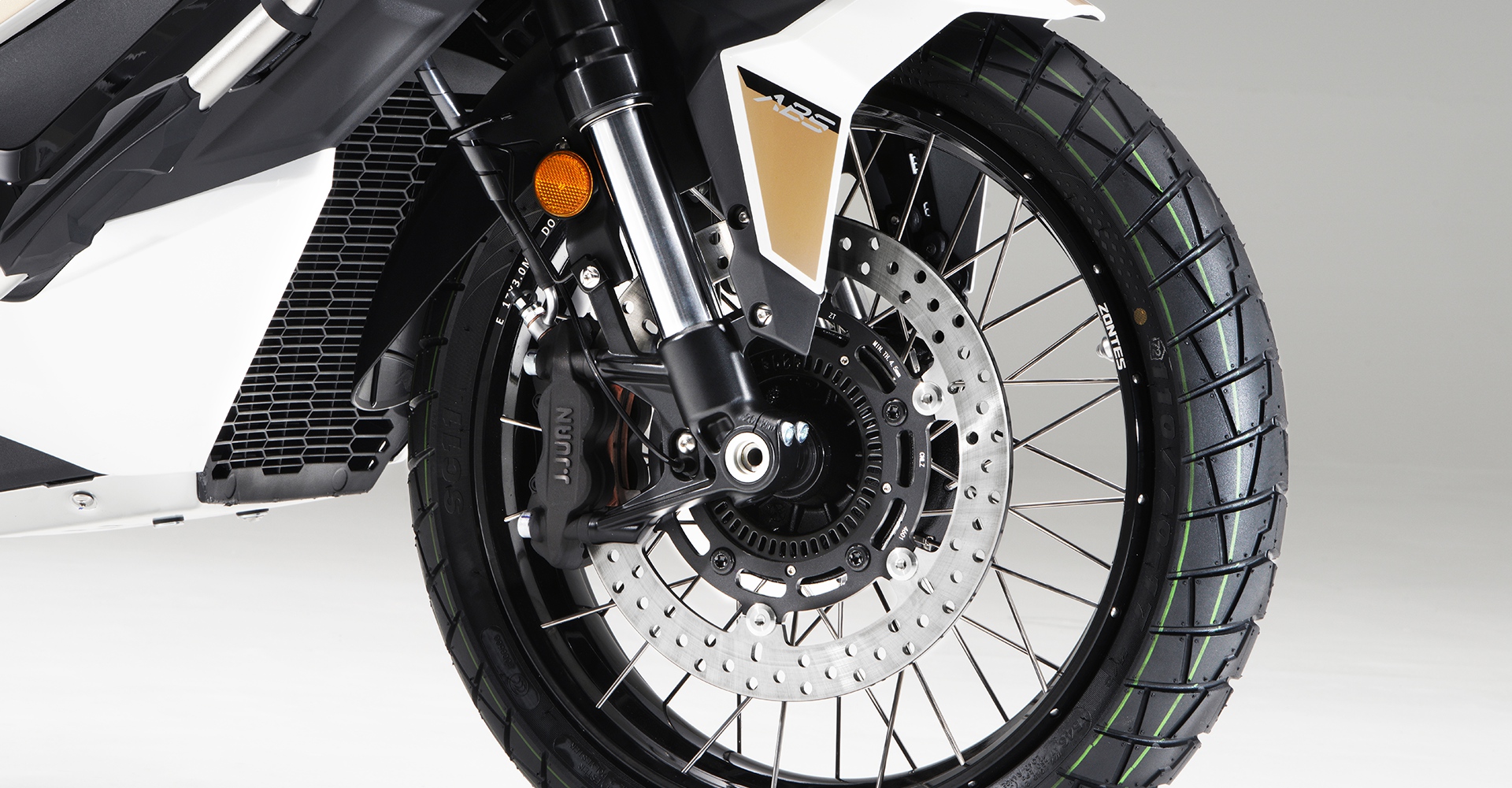

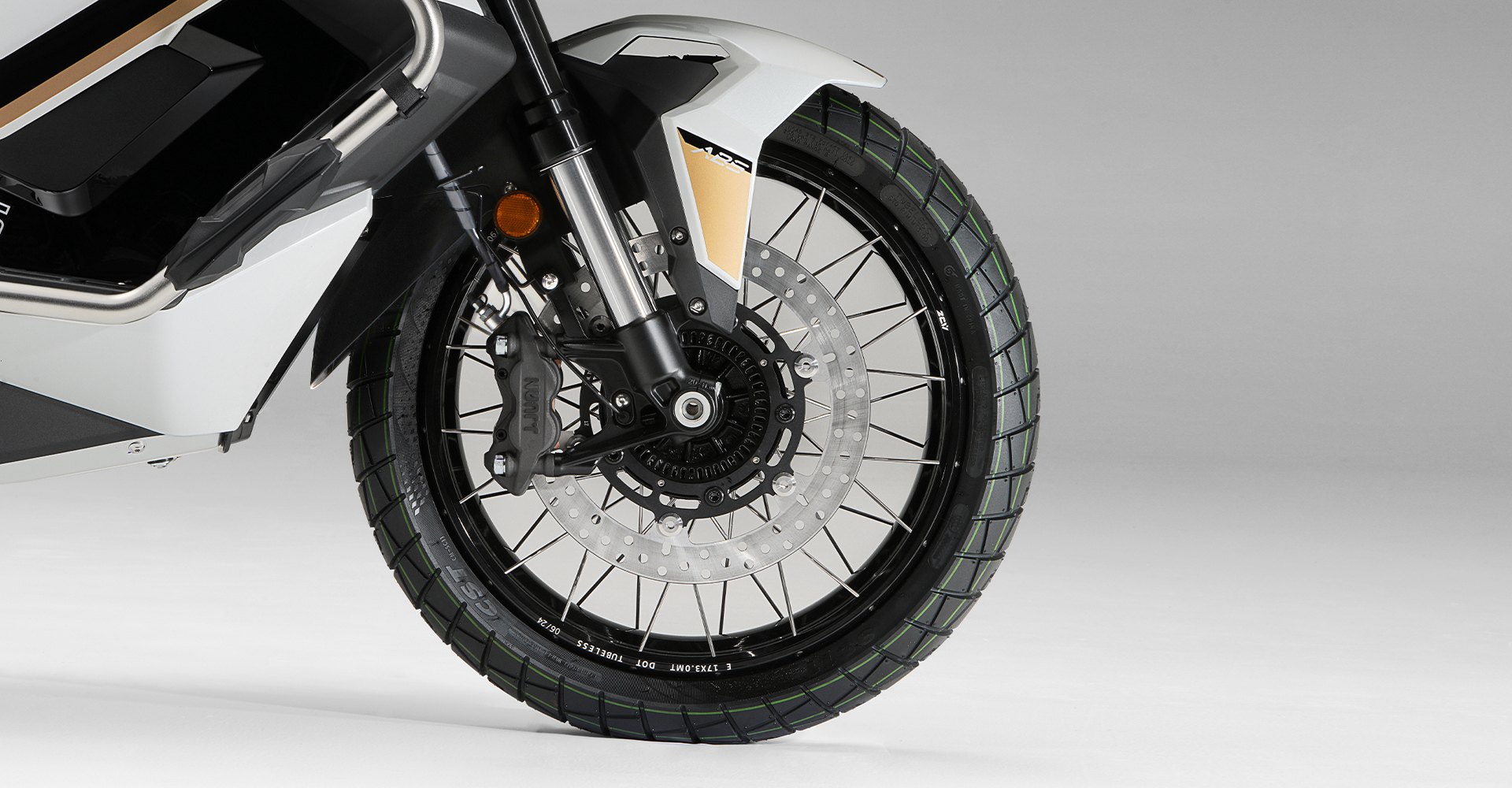

The front and rear wheels feature vacuum-laced steel spokes and spun aluminum rims. The side-pull spoke pattern reduces weight while maintaining strength and impact resistance.
CST high-performance tires designed specifically for adventure riding.

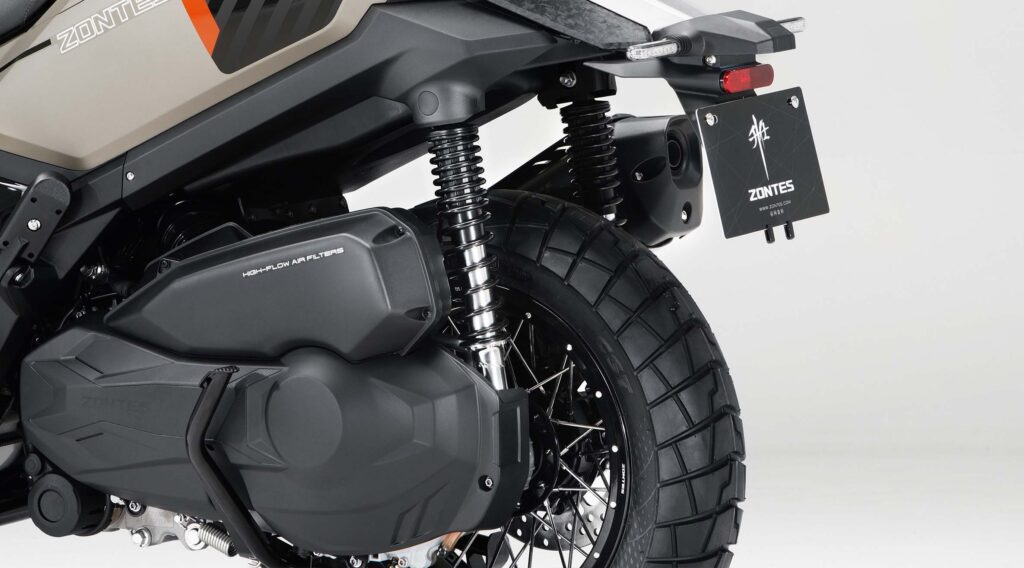

The front shock absorbers feature adjustable rebound and compression damping, while the rear shock offers adjustable rebound damping and preload, allowing for personalized suspension tuning. The 41mm diameter inverted front forks feature a lightweight design, reducing unsprung weight and enhancing handling performance. The rear shock absorber utilizes an external reservoir, effectively absorbing minor road imperfections while providing enhanced support and a more comfortable ride.
The 17.5-liter, large-capacity fuel tank ensures worry-free long-distance touring.

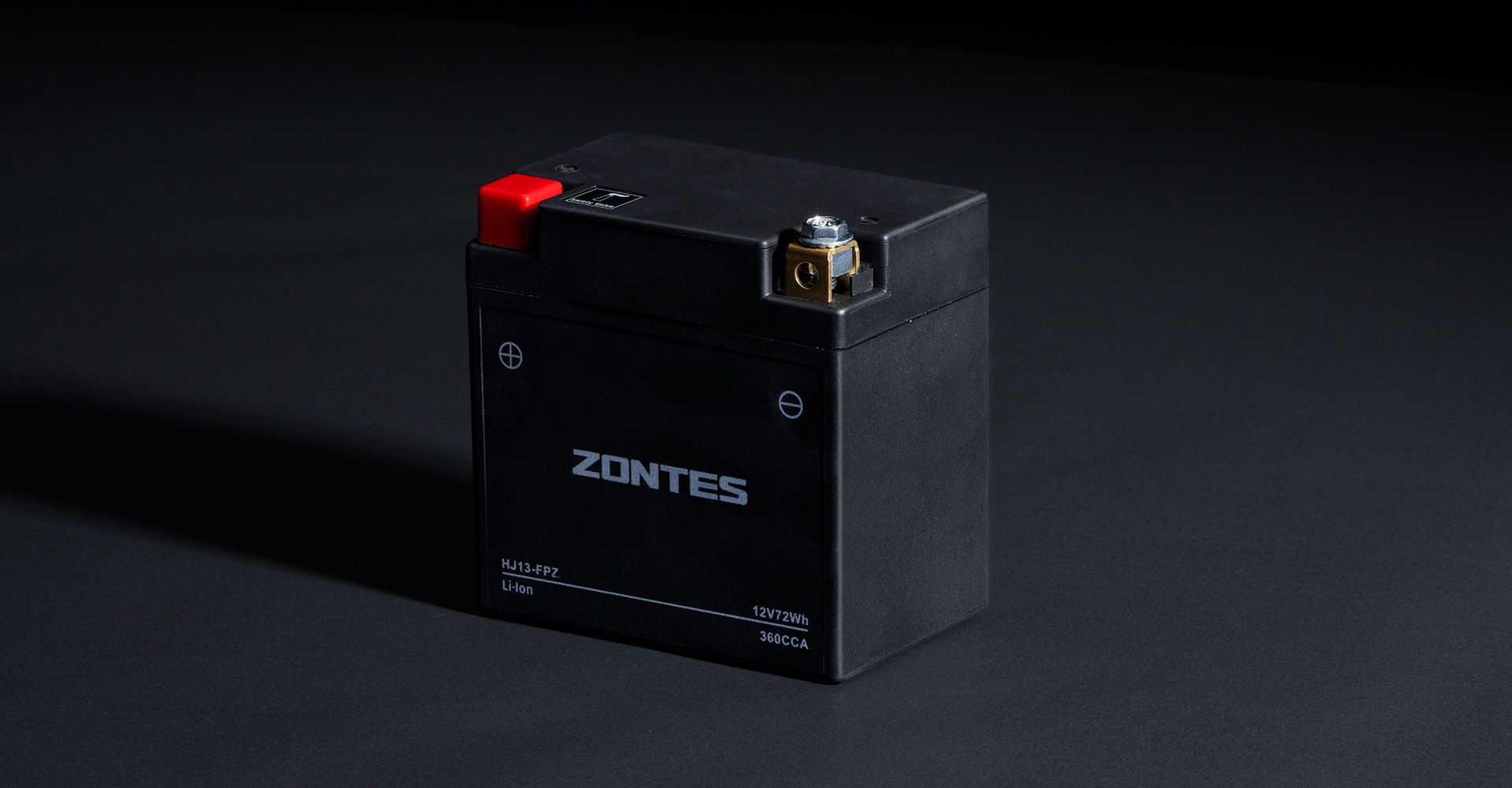

The 6Ah lithium-ion battery offers a compact size, lightweight design, superior low-temperature discharge performance, and extended lifespan.

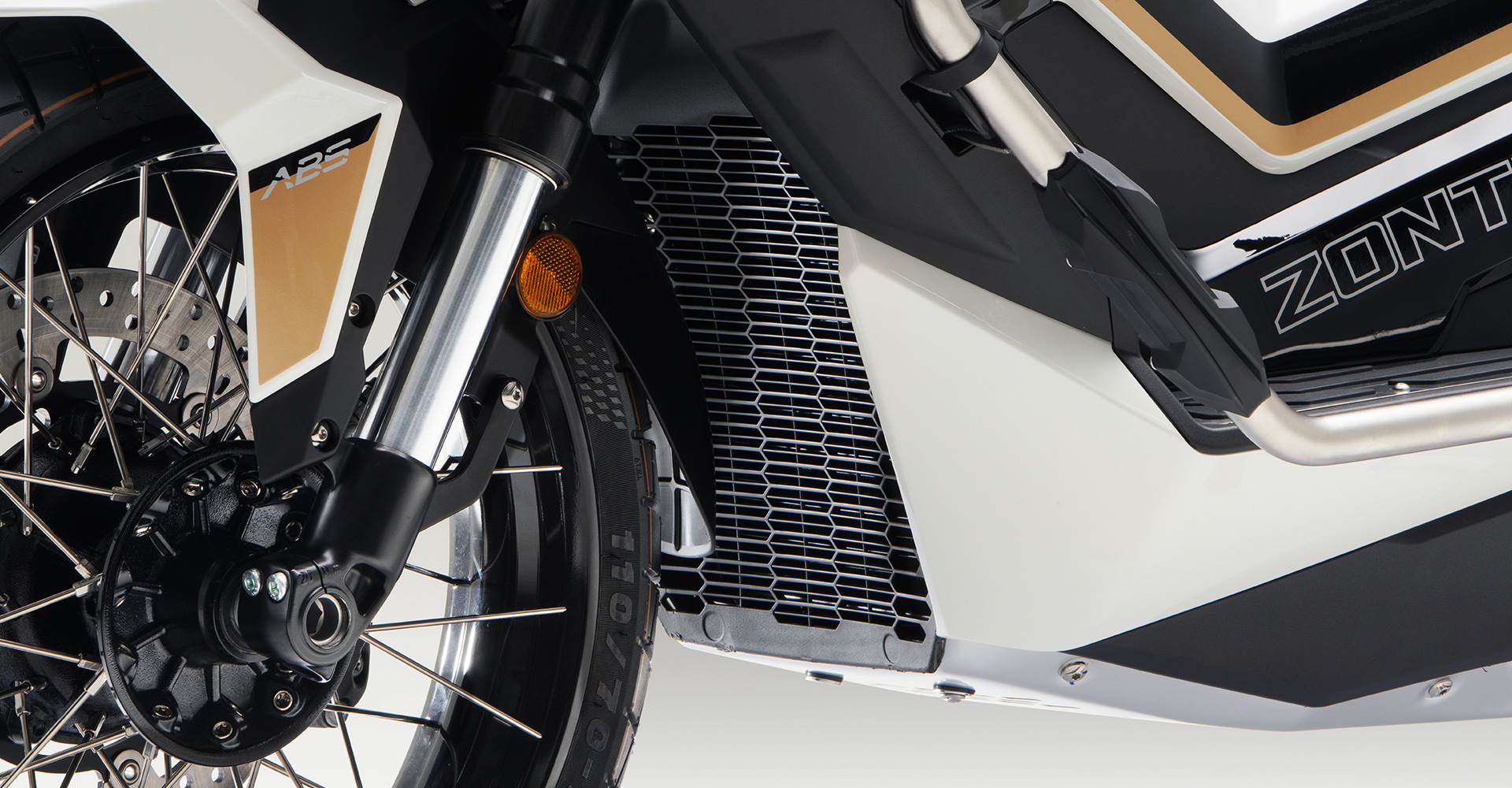

The wide-surface liquid-cooled radiator ensures optimal operating temperatures for the high-performance engine, preventing overheating and enabling smooth cold starts.
Intelligent Control, Experience the New Joy of Travel

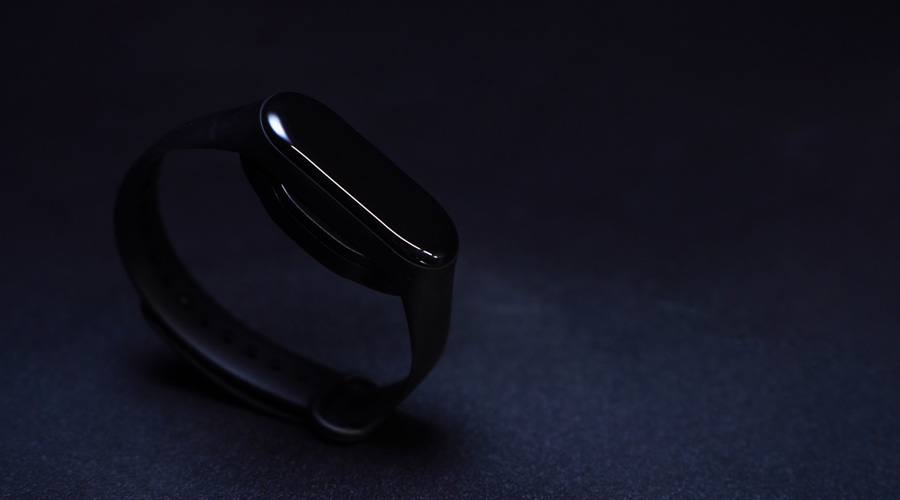

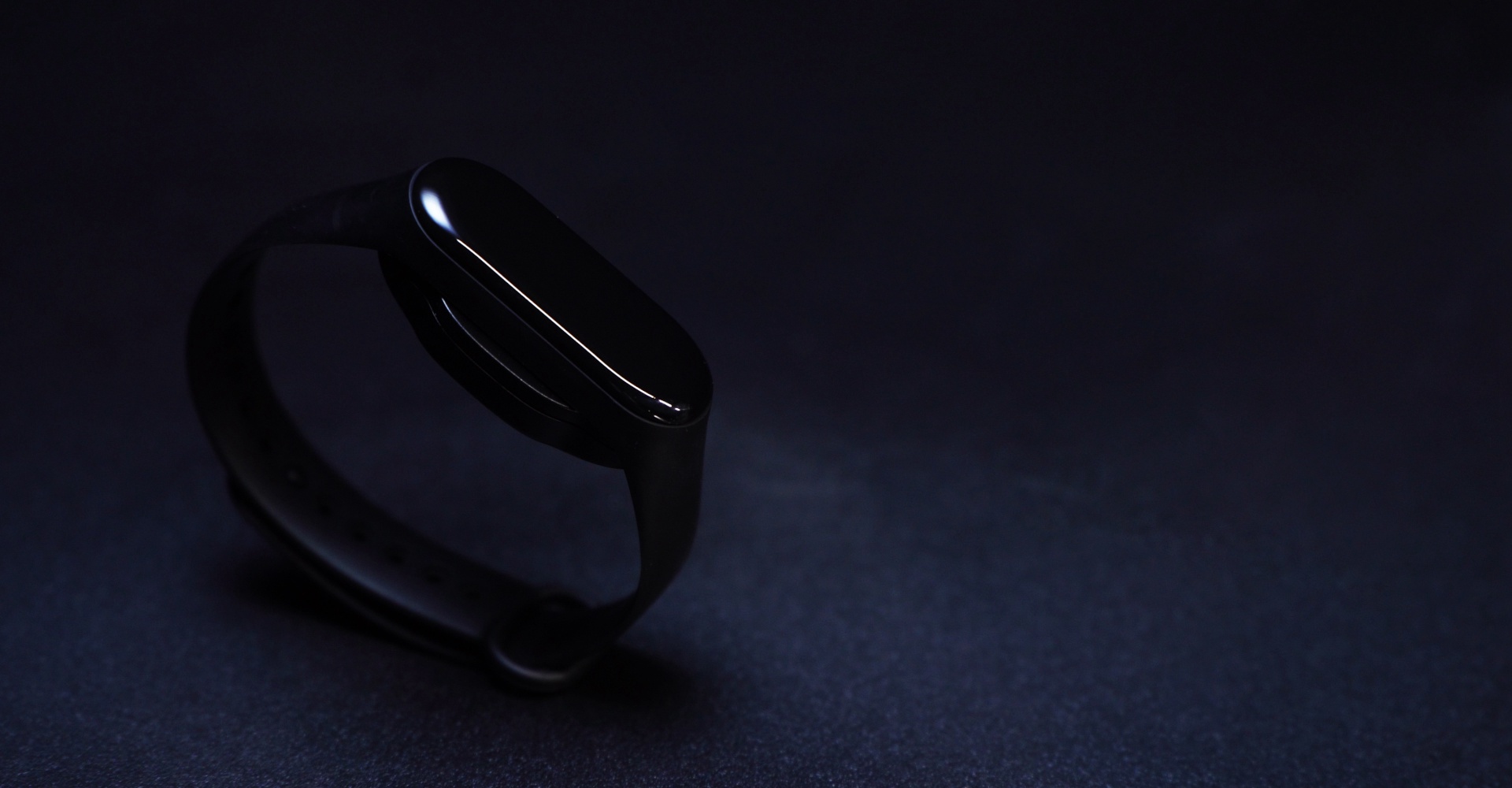

The 3.0 keyless ignition system utilizes CAN communication for seamless integration with the ECU, instrument panel, and other systems. Featuring 4G, GPS, and Bluetooth connectivity, the system is activated by a compact and intuitive proximity key, ensuring a seamless and powerful start to every journey.

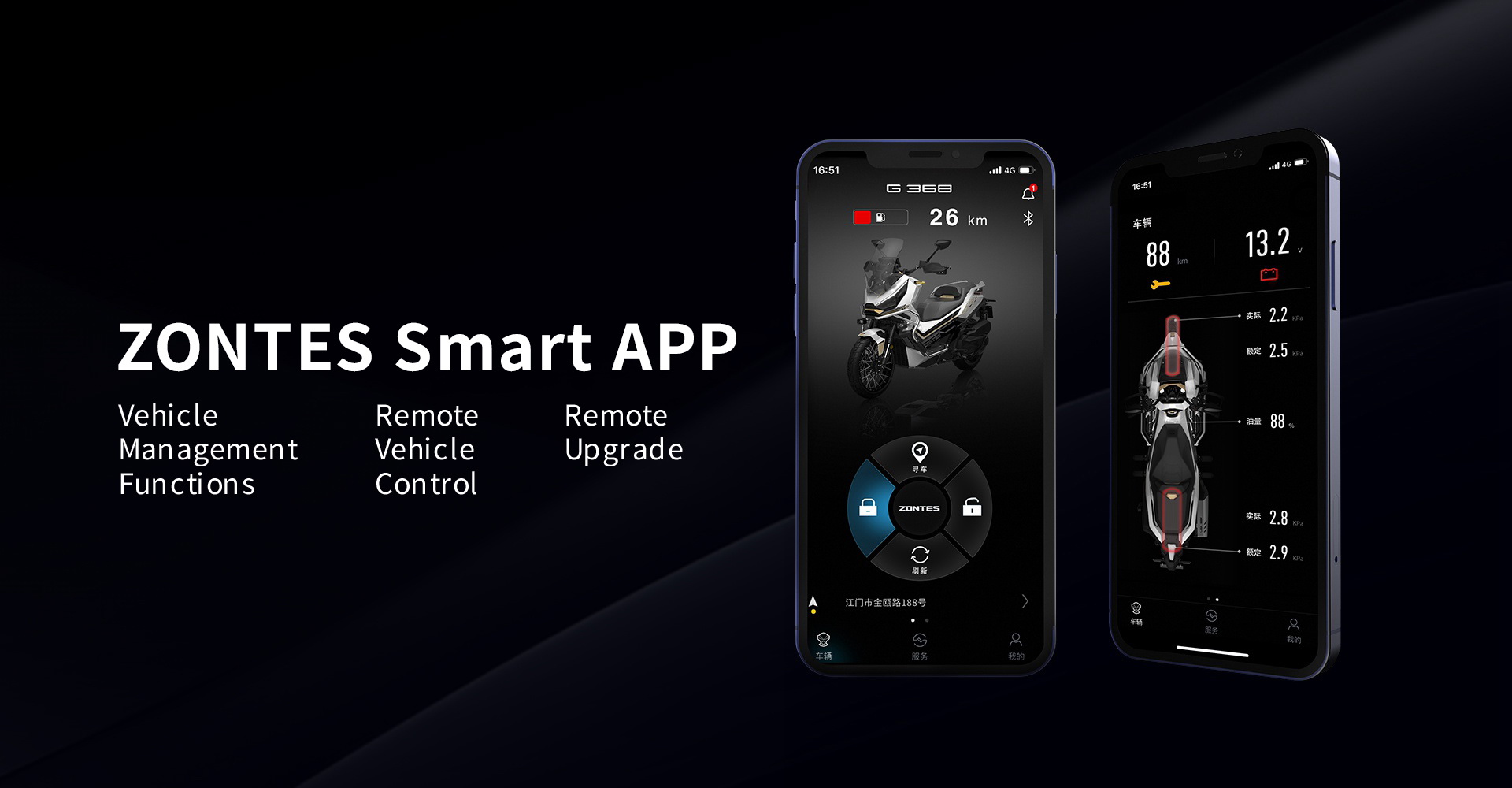

The Zontes mobile app provides comprehensive vehicle management functions, including remote control, data retrieval, user authorization, ride tracking, and over-the-air upgrades. The latest generation of the app integrates features such as screen mirroring for navigation, OTA updates, DVR playback and download, enhancing convenience and connectivity.

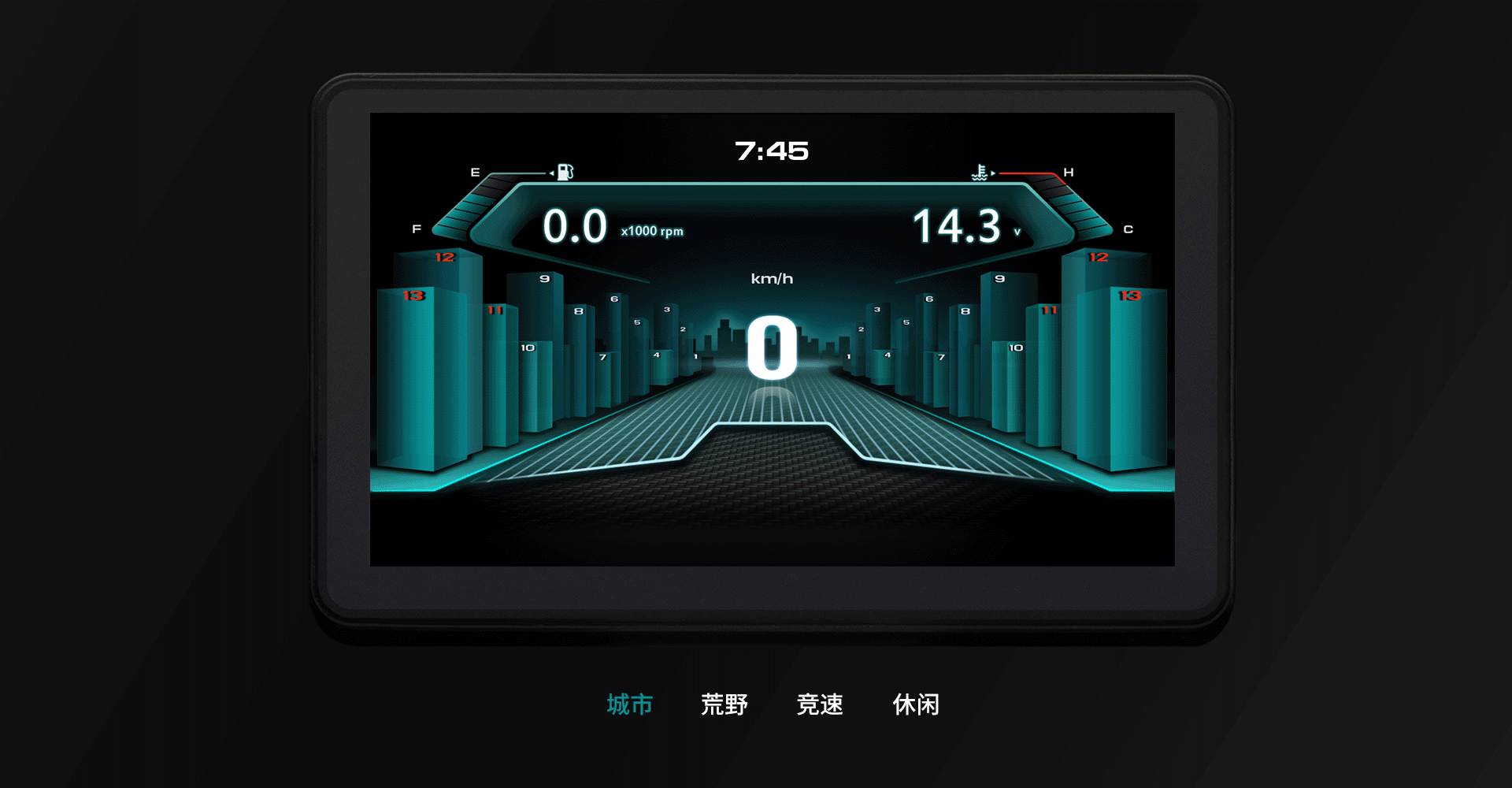

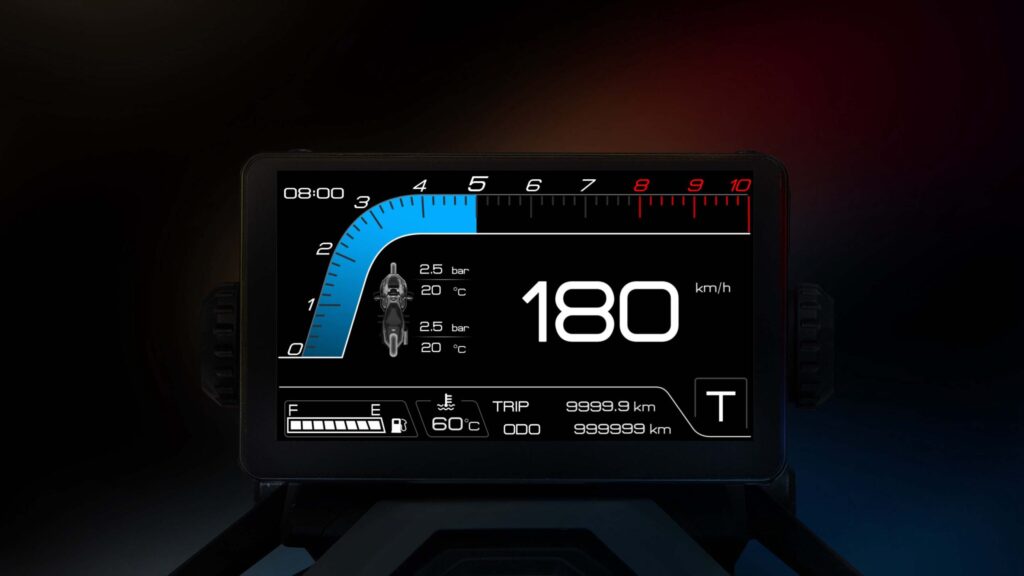

The 8-inch full virtual high-definition high-brightness TFT full-color LCD IPS instrument panel features a large and intuitive interface, providing clear and comprehensive vehicle information at a glance. Four customizable themes are available. The panel supports simultaneous connection with smartphones and Bluetooth helmet headsets, offering features such as screen mirroring for navigation, tire pressure monitoring, automatic brightness adjustment, real-time vehicle data display, and fault code diagnostics.
The integrated front and rear dual-camera driving recorder offers comprehensive coverage of your journey. Featuring 128GB storage capacity, a Sony STARVIS CMOS sensor for exceptional low-light performance, 1080p high-definition video quality, a 140° wide-angle lens, and an F1.8 aperture, the system captures crucial details in various riding conditions. Enjoy the benefits of advanced technology.
Easily switch between Eco and Sport modes using the handlebar switch. In Eco mode, the system automatically transitions to Sport mode when the engine speed reaches 7,000 rpm, providing instant power for overtaking maneuvers.
The tire pressure monitoring system (TPMS) effectively mitigates the risk of tire blowouts, ensuring a safer riding experience. The system provides real-time monitoring of tire pressure and alerts the rider through the instrument panel with flashing warnings if abnormalities are detected.

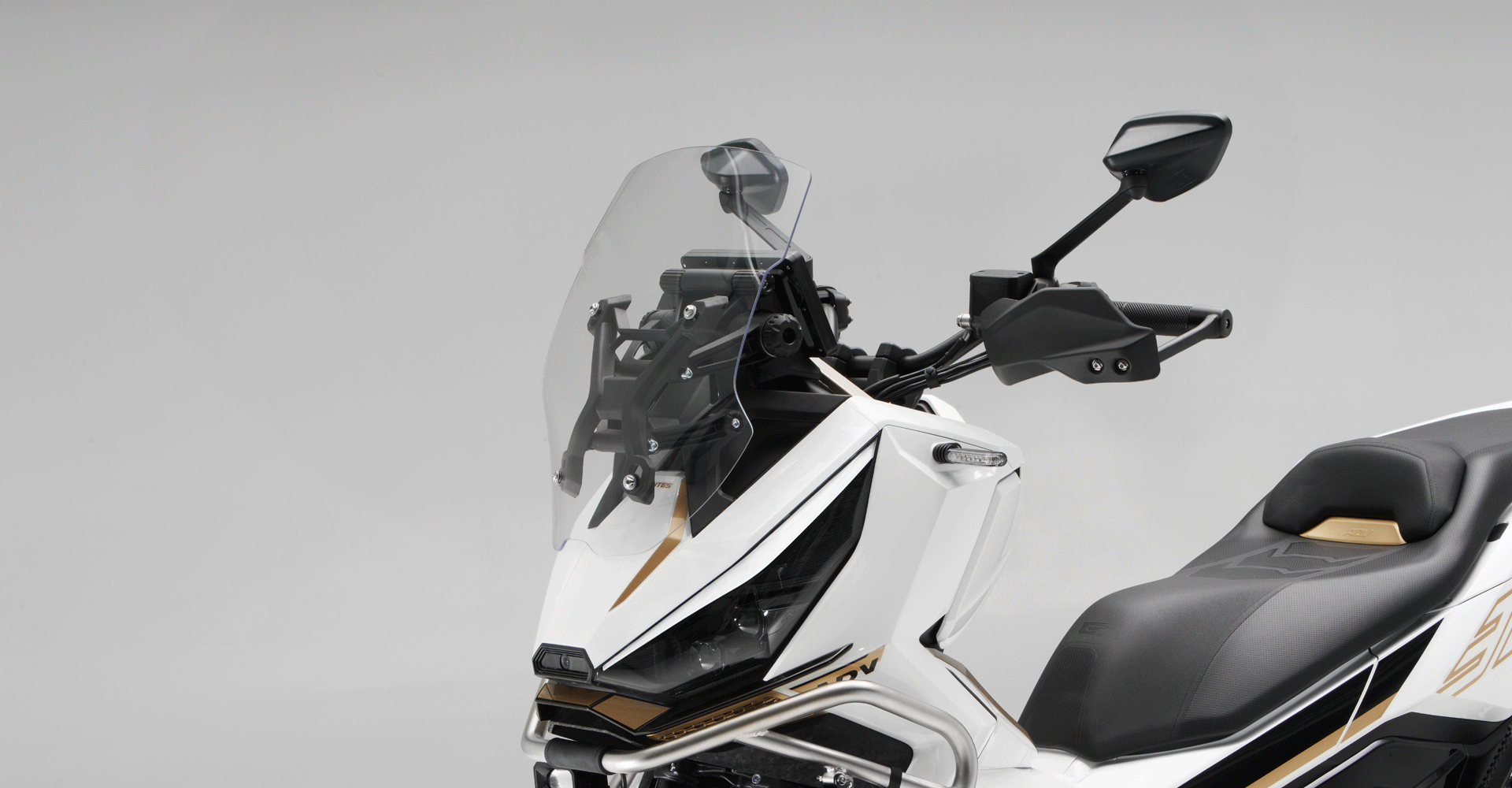

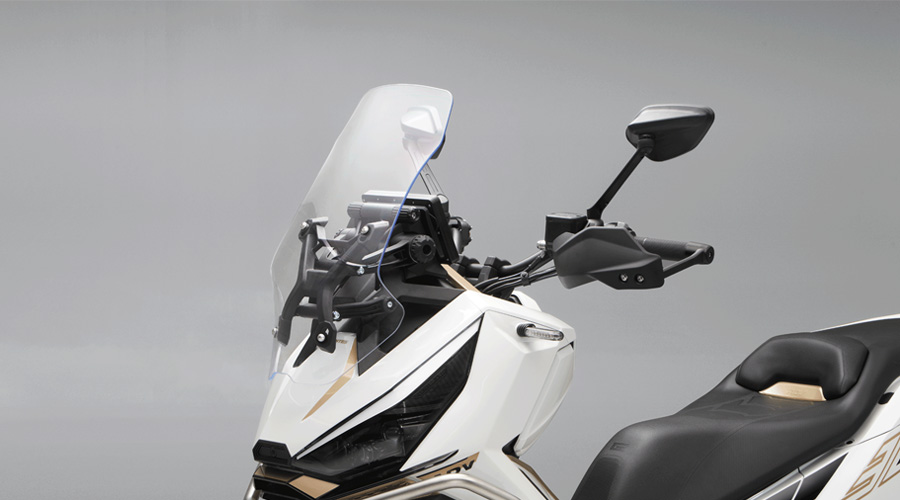

The 5-position adjustable windscreen caters to individual rider preferences. Its widened and heightened design effectively deflects wind over the rider's head and shoulders, ensuring comfort even during long-distance scooter touring.
Unconventional Style, Exuding an Aggressive Presence

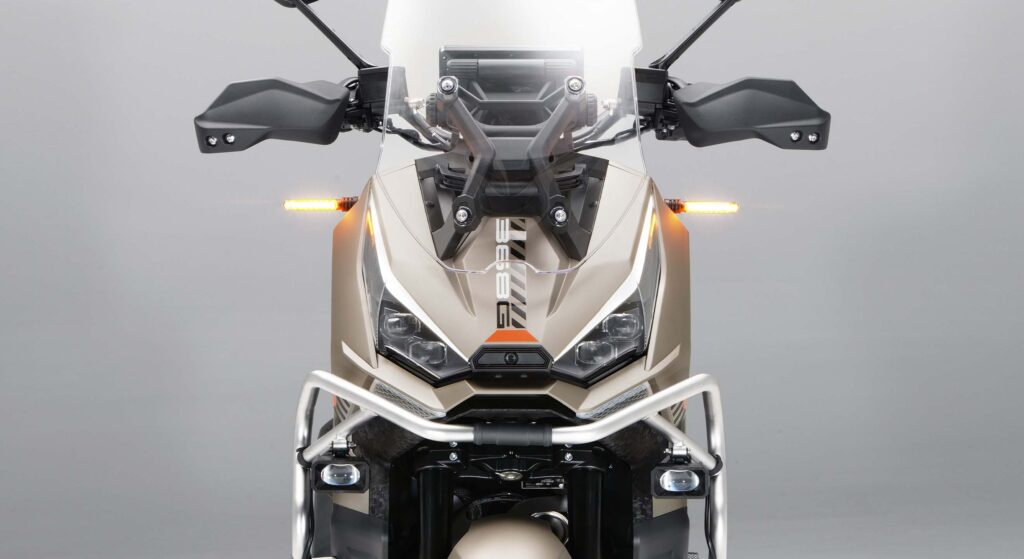

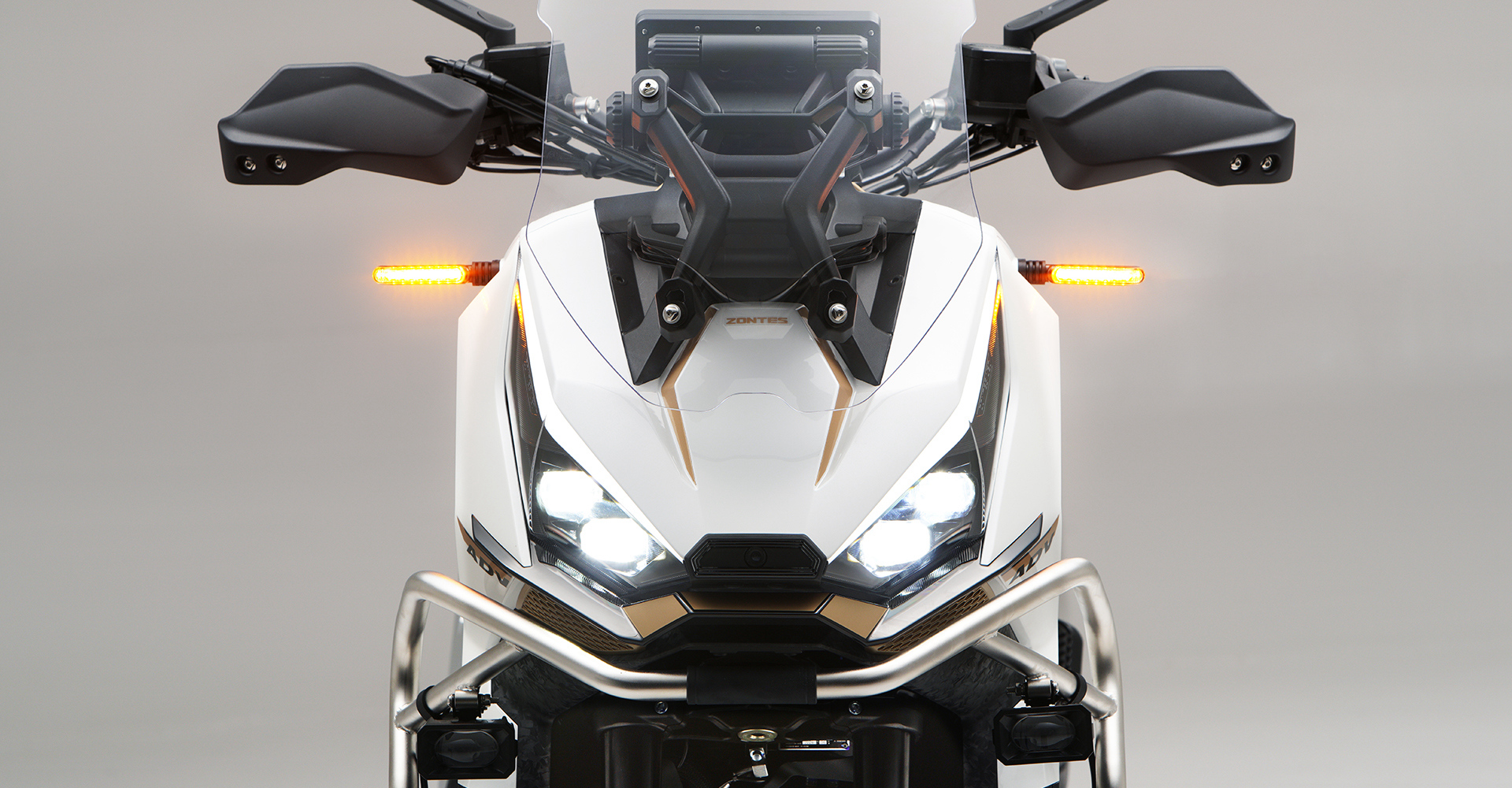

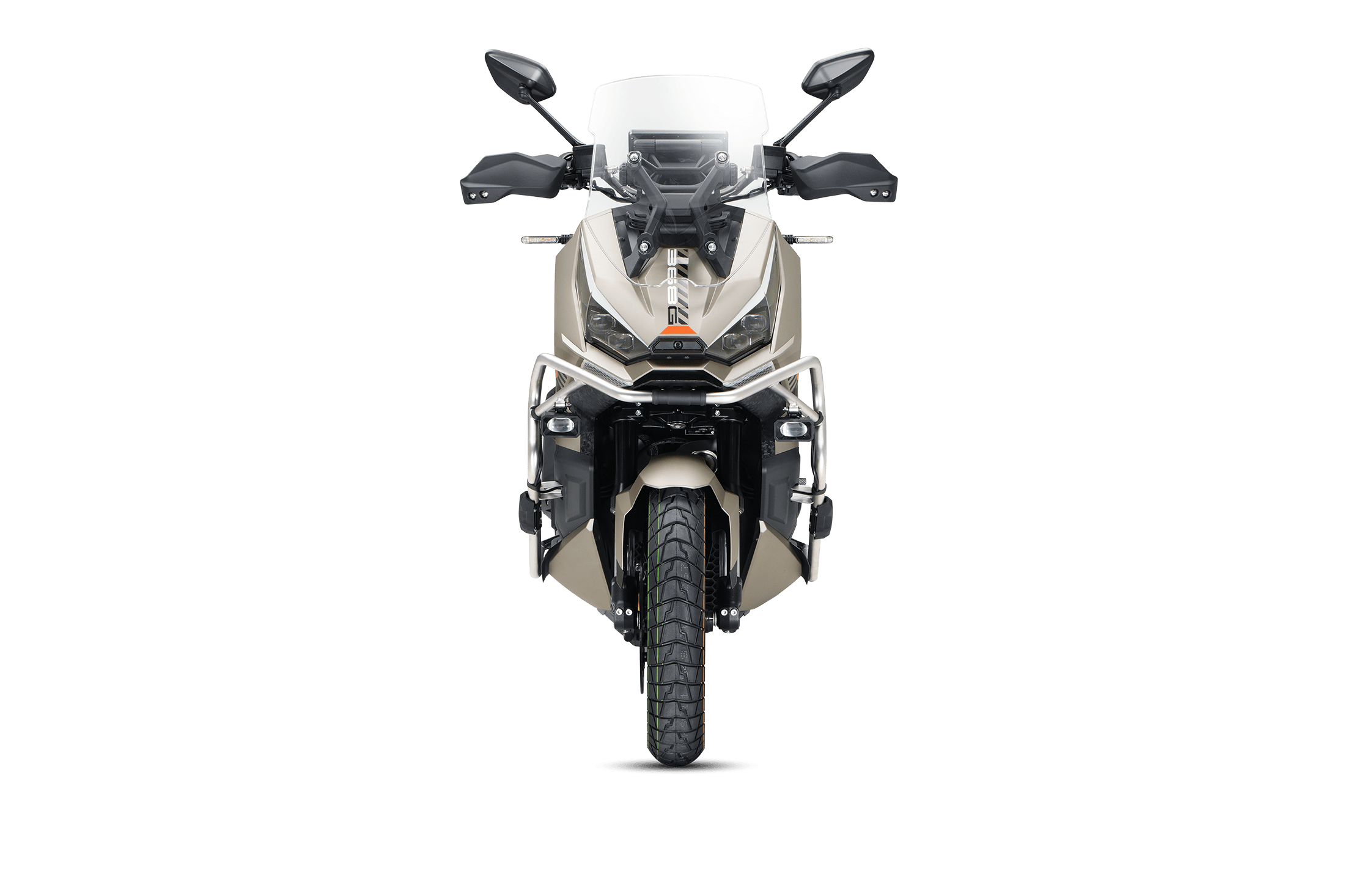

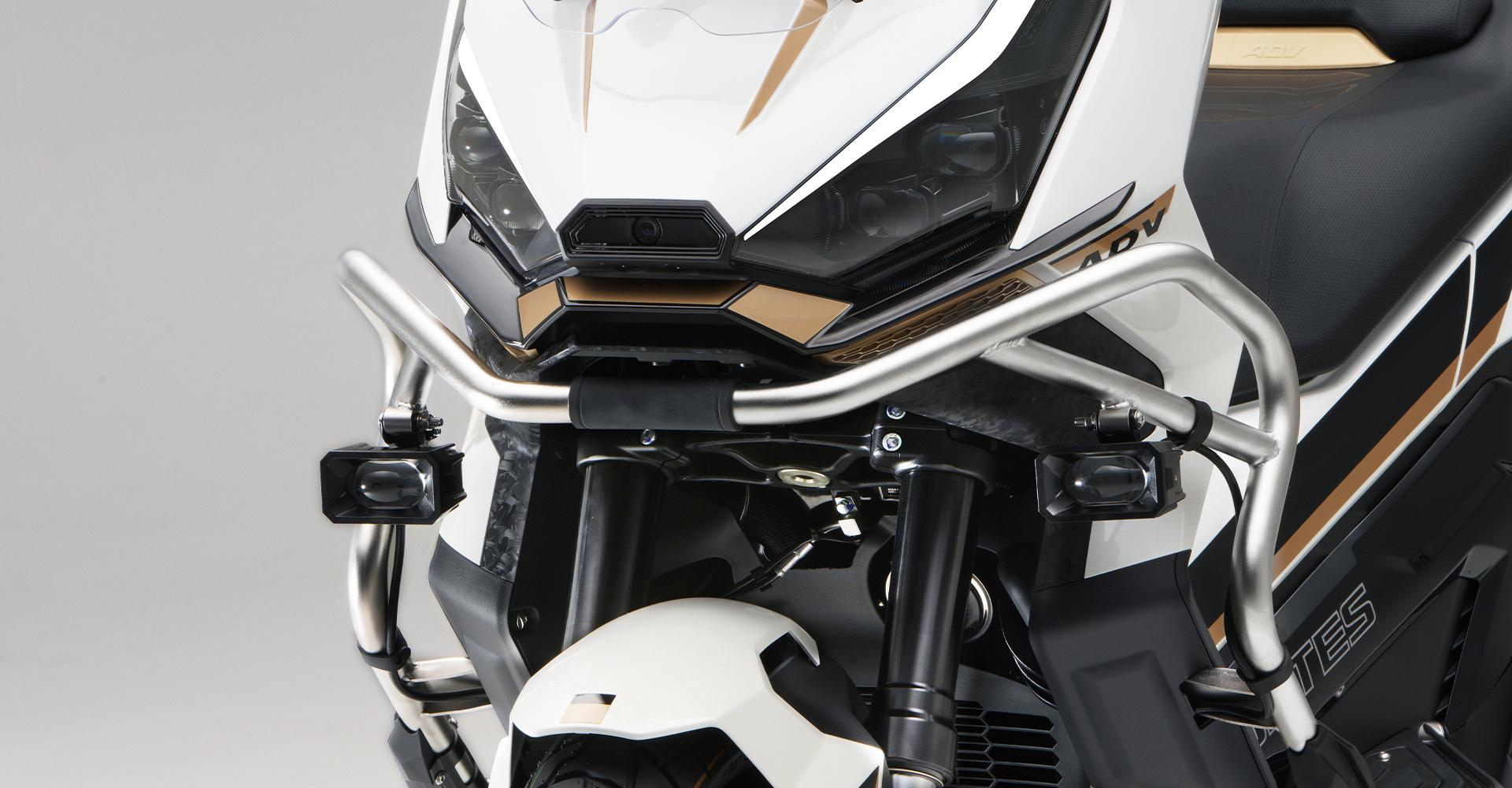

The sharp headlights feature minimal light decay and extended lifespan, enhancing safety during nighttime riding. The four LED projector modules emit a soft yet powerful beam with excellent penetration, high brightness, and wide coverage, enabling riders to confidently navigate diverse road conditions and weather challenges. Upon startup, the sequential illumination effect of the modular position lights accentuates the motorcycle's sporty character. The motorcycle is equipped with fog lights, further enhancing visibility and rider confidence by broadening the effective light range and increasing brightness.

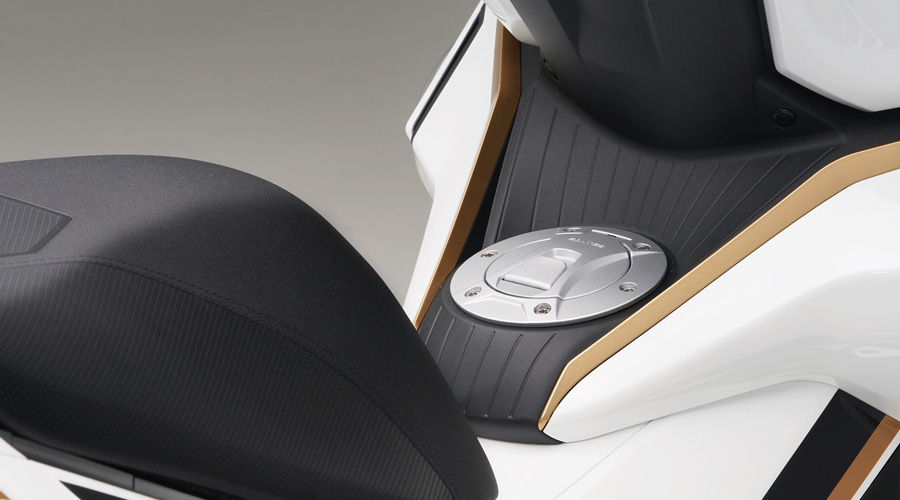

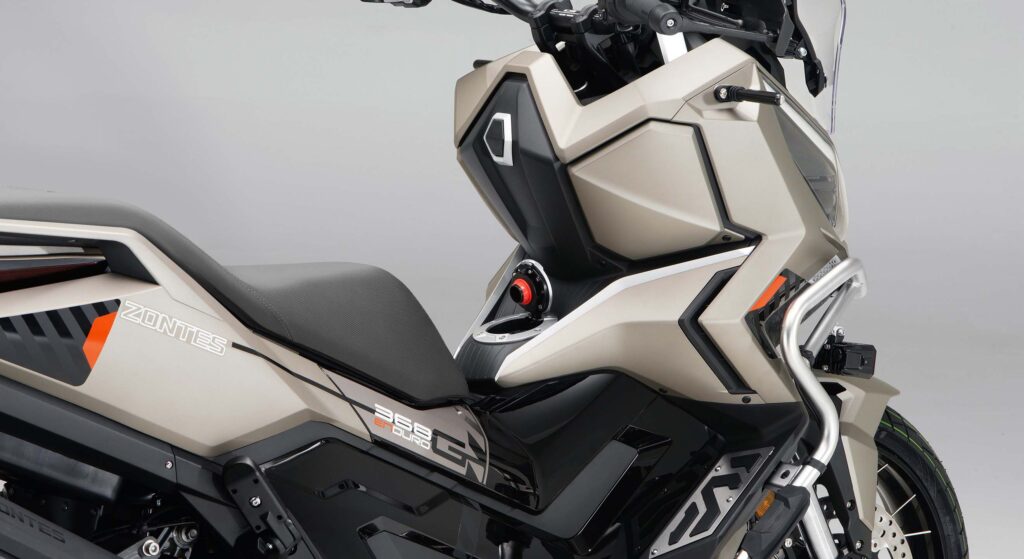

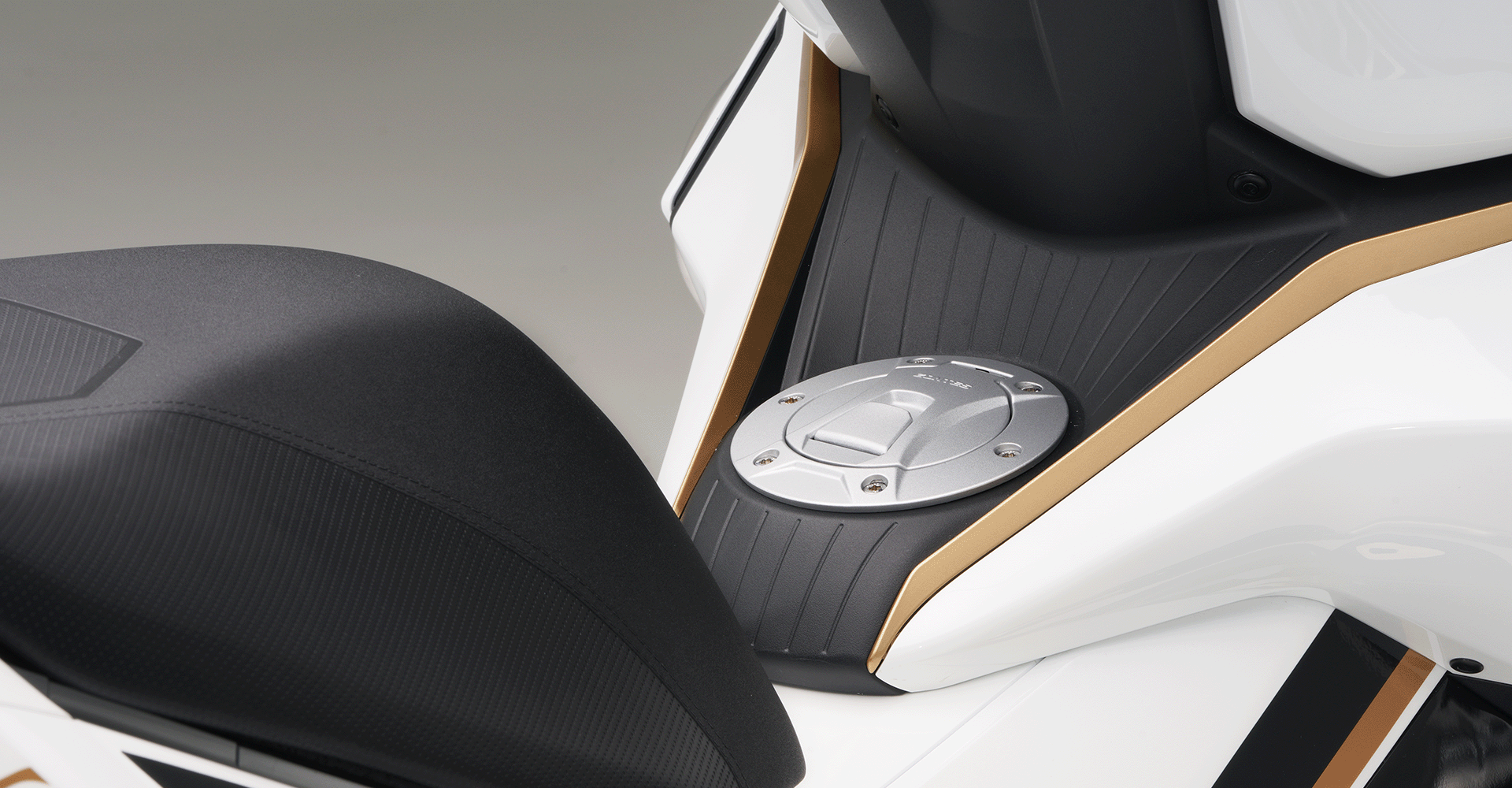

The electronically controlled fuel cap provides effortless access to the fuel tank, eliminating the need for a key. The contemporary aluminum alloy cover adds a touch of modern sophistication.

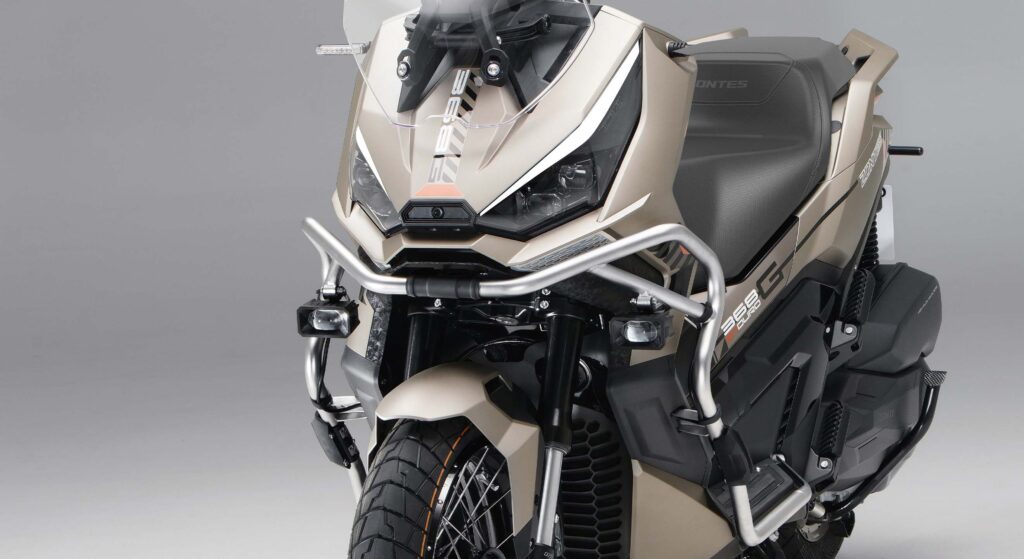

The one-piece stainless steel crash bars are constructed using CNC bending and laser welding techniques. The electropolished surface provides exceptional corrosion and scratch resistance. These lightweight yet robust bars offer excellent protection for both the motorcycle and the rider.

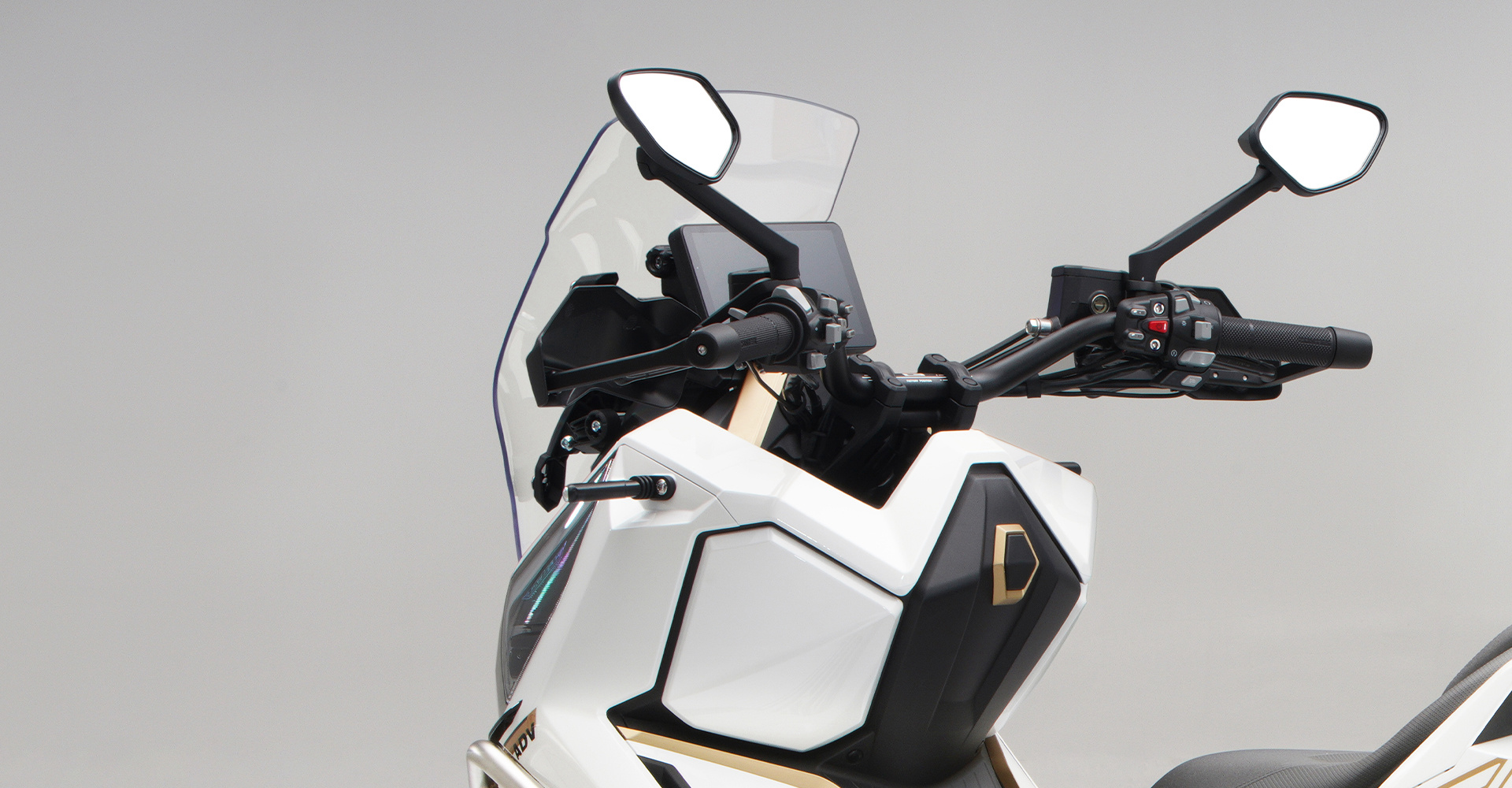

The handlebars offer two-position adjustability, allowing riders to customize their riding position for optimal comfort and control.
Fully Equipped, Combining Performance and Comfort

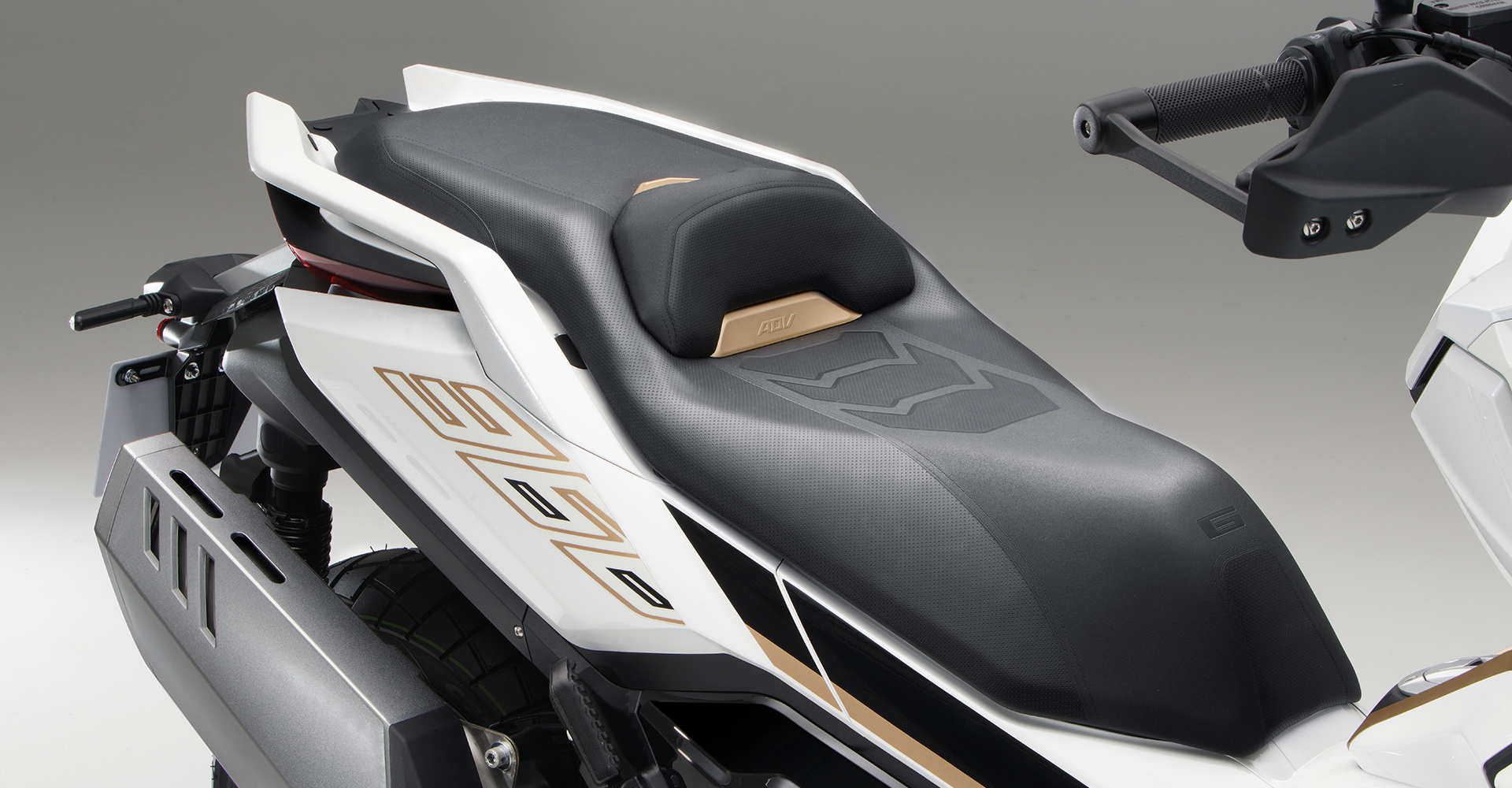

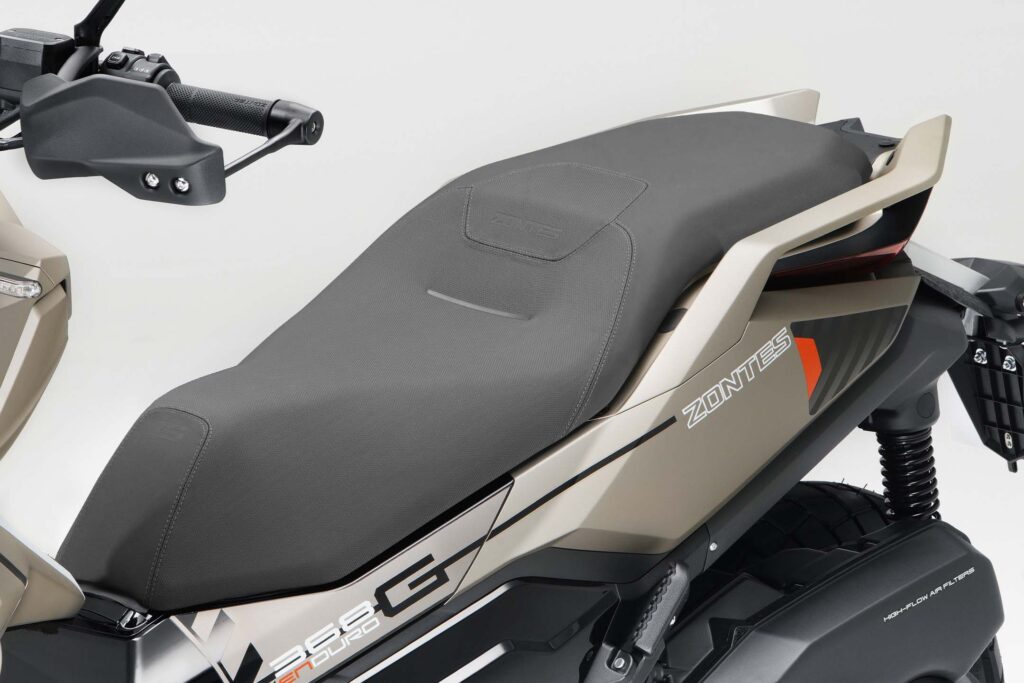

The sofa-like seat with lumbar support offers exceptional comfort with its plush padding and generous width. The seat features a pneumatic damper for smooth and effortless opening and closing.
Dual fast-charging USB ports are provided, along with three Type-A and Type-C dual-port fast chargers. These support QC3.0 and most other fast charging protocols, delivering up to 18W of power per port for rapid charging.

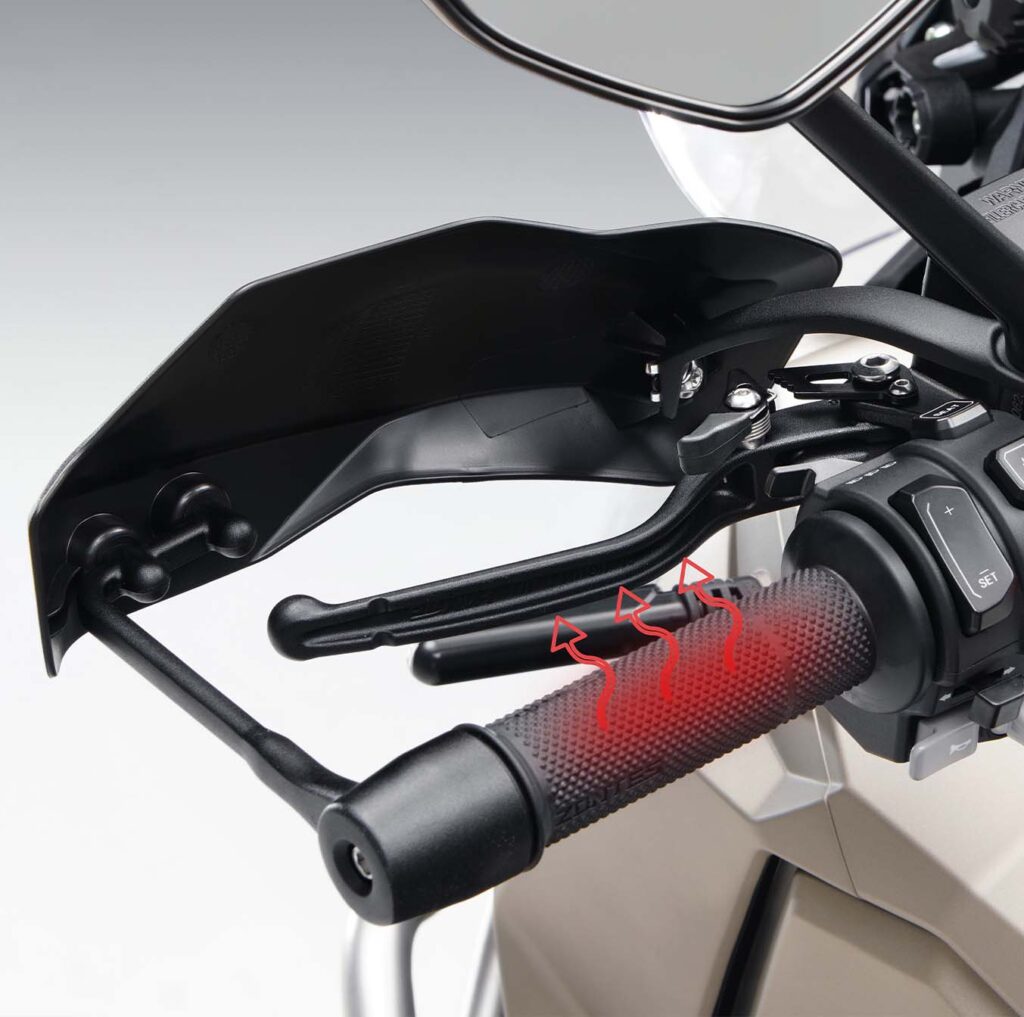

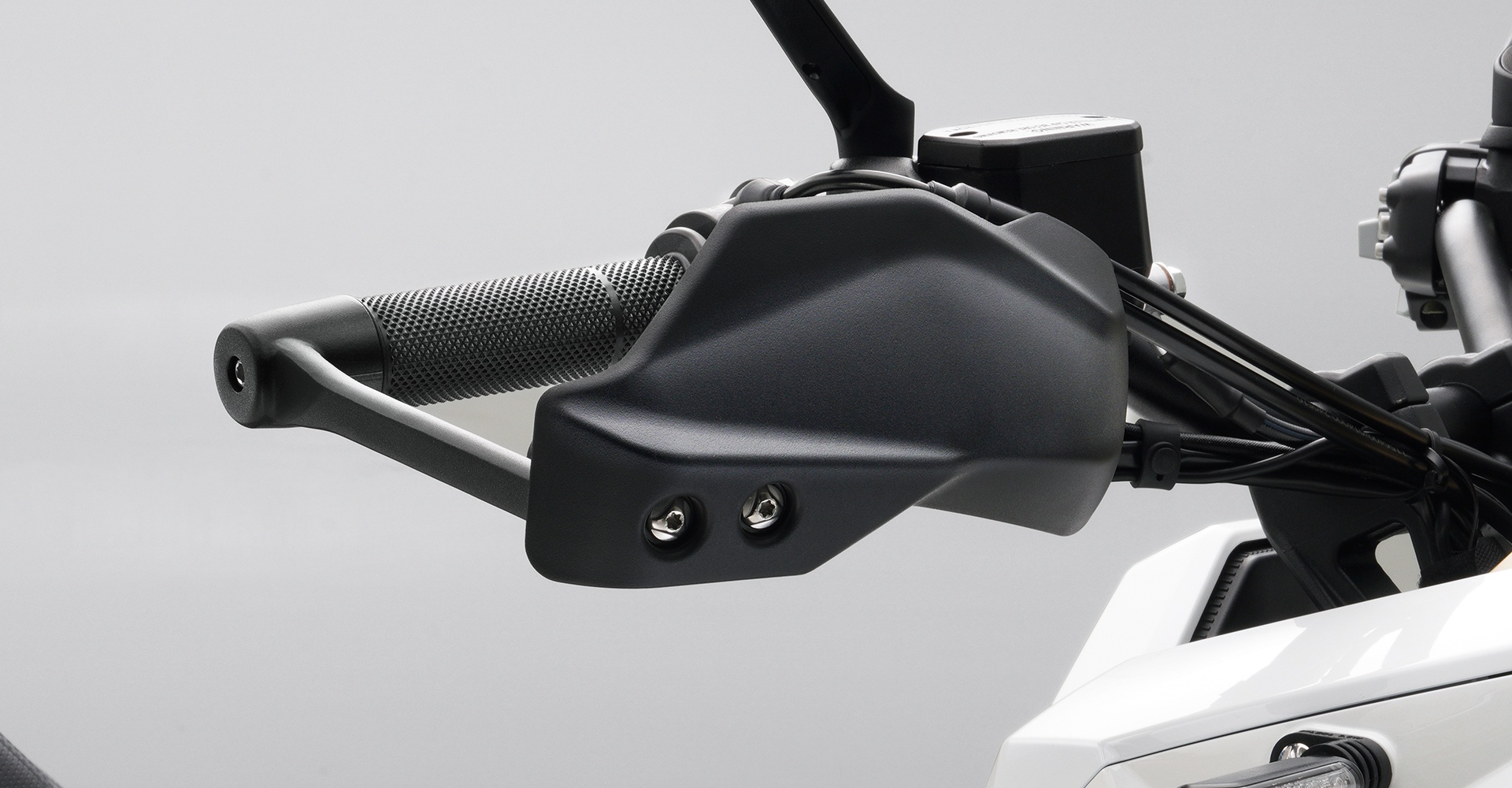

Heated grips come standard, and handguards are included as a thoughtful addition for comfortable riding in colder weather.

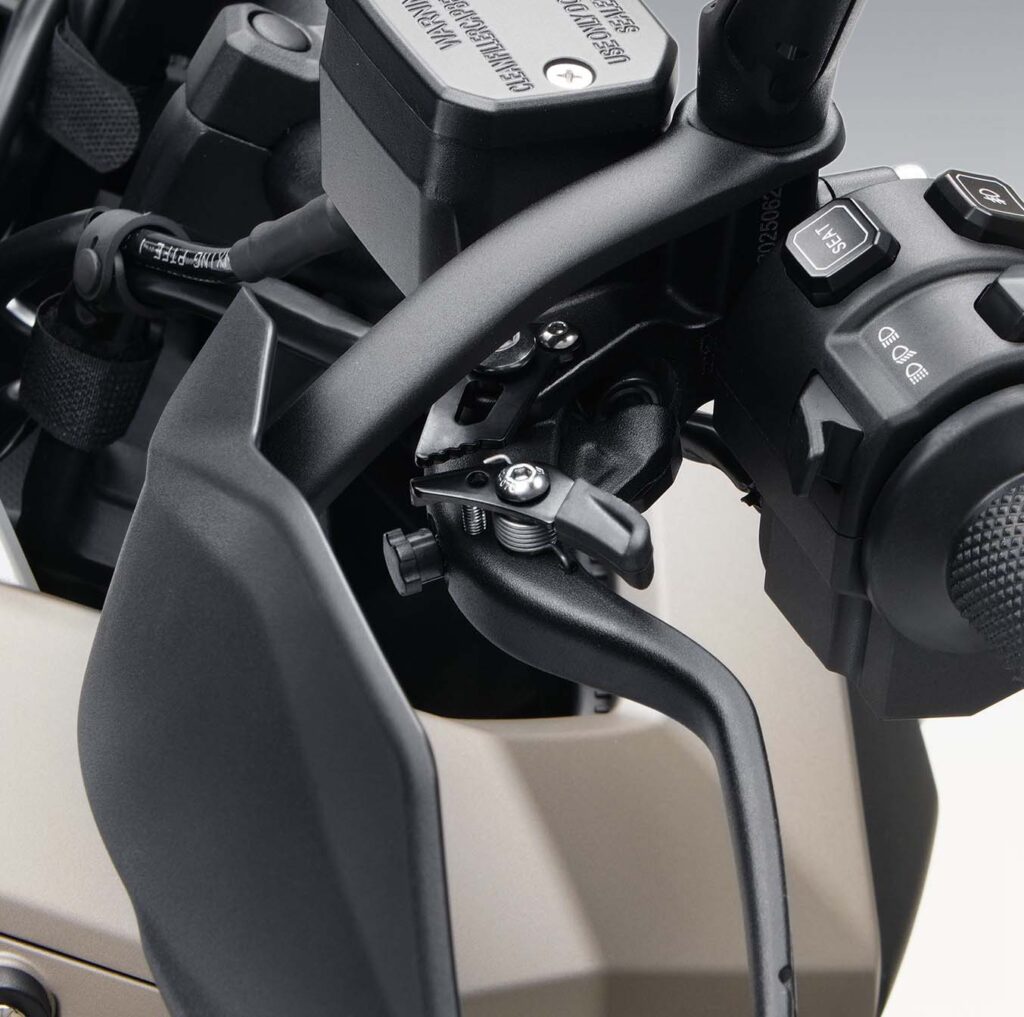

The brake lever features an integrated parking brake function, enhancing safety when parked on inclines.

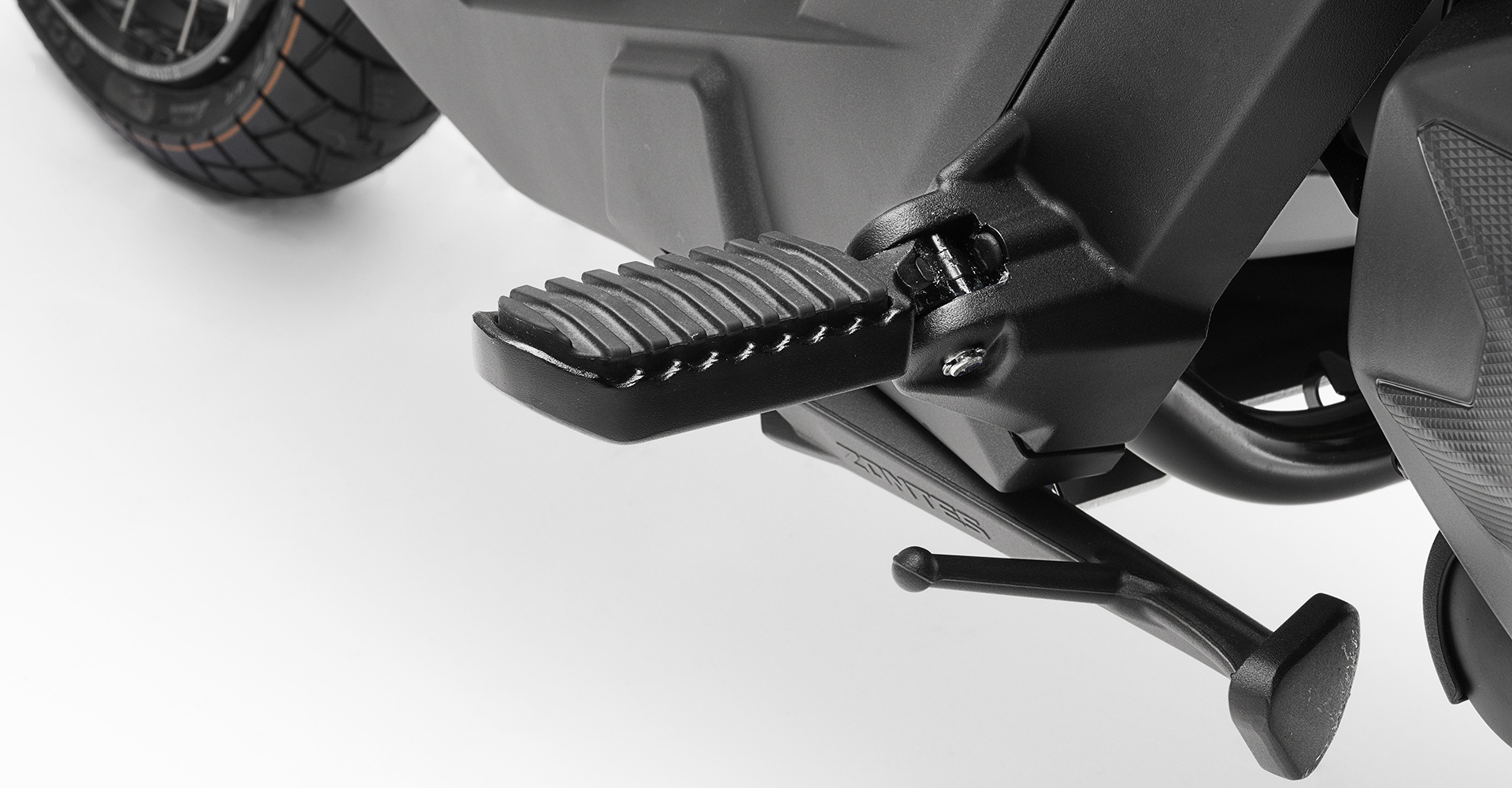

Aluminum alloy footrests provide robust support for stand-up riding.

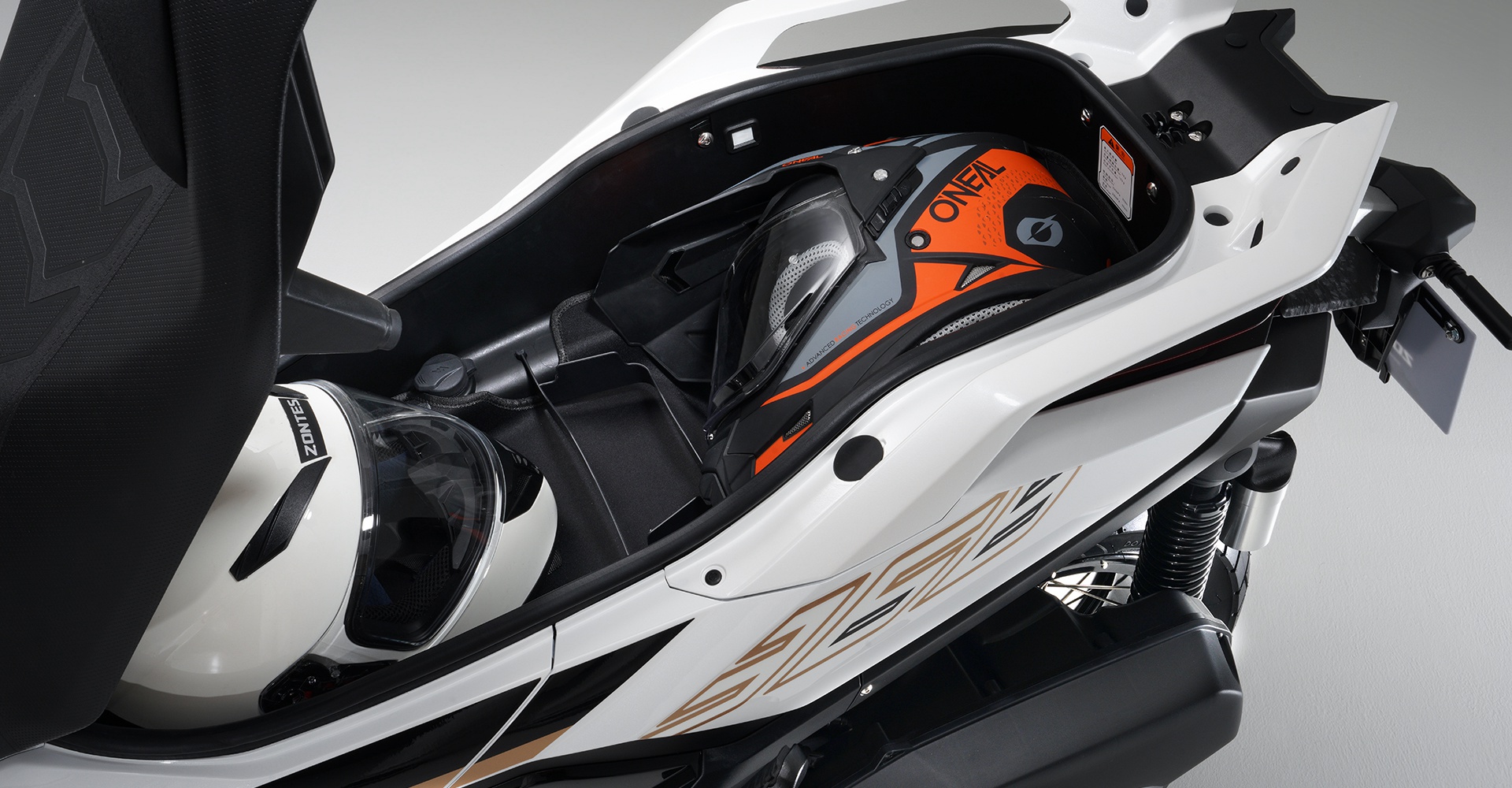

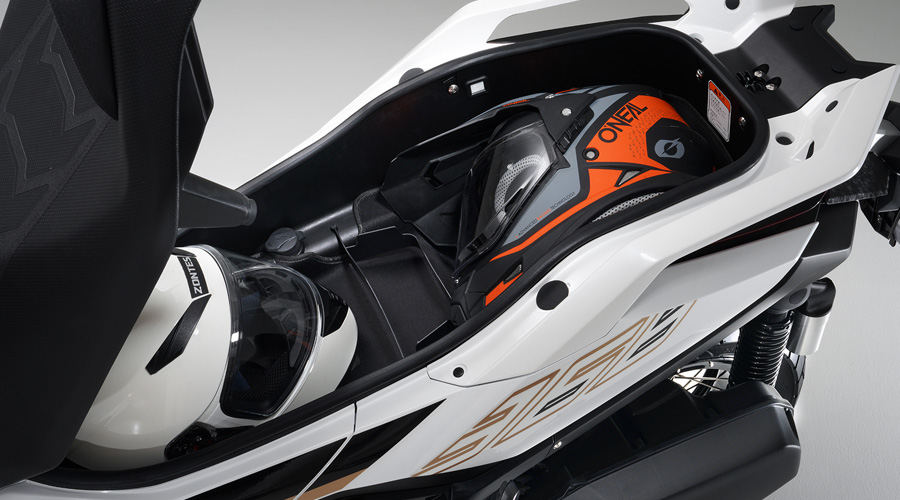

The large-capacity rear storage compartment can accommodate two XXL full-face helmets, riding gear, and smaller items.
The aluminum bash plate features a sleek, natural oxide finish. The bash plate is designed for various riding conditions. Strategically placed cutouts ensure optimal airflow for cooling while effectively protecting the engine and fuel tank from rocks and debris.
Responsive Handling, Ensuring a Confident and Secure Journey
The Bosch electronic fuel injection system ensures a safe and reliable riding experience.
The advanced traction control system (TCS) continuously monitors the speed of both wheels, intervening when necessary to maintain traction and preventing skidding. This provides enhanced stability and control, inspiring confidence in challenging riding conditions.
The dual-channel ABS (Anti-lock Braking System) provides optimal braking performance and control, preventing wheel lock-up during hard braking. This advanced safety feature inspires confidence in various riding conditions, including sand, rain, or snow.
